DNP will exhibit at SID Display Week 2025,
unveiling innovative functional films and essential components designed for next-generation XR technology.
unveiling innovative functional films and essential components designed for next-generation XR technology.
Exhibition
Overview
Date
May 13th - May 15th, 2025
Venue
San Jose Convention Center, San Jose, California

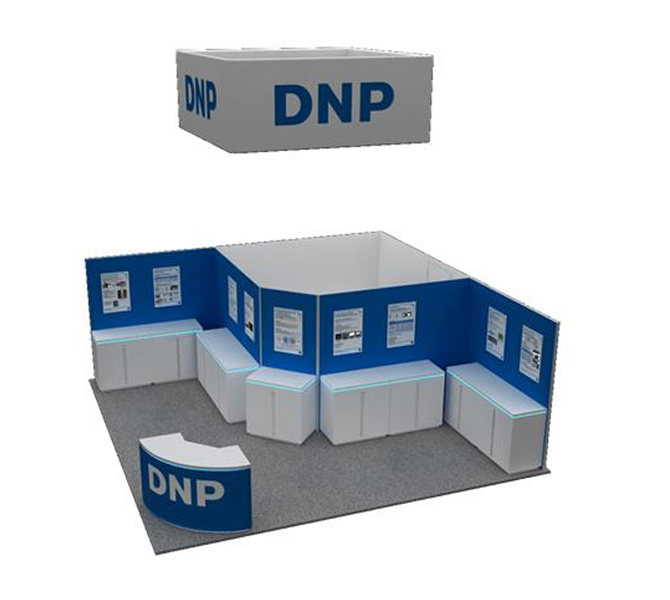

Booth Number
No.1140Check the exhibition map
Time
9:00～17:00
（First day 10:30～ start, Final day ～14:00 close）
（First day 10:30～ start, Final day ～14:00 close）
What's
SID Display Week 2025
SID Display Week is one of the world's largest exhibitions in the electronic display industry held in the US.
Every year, display related researchers and business personnel gather to see state of the art technology and products.
Every year, display related researchers and business personnel gather to see state of the art technology and products.
Exhibition Concept

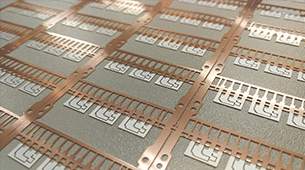

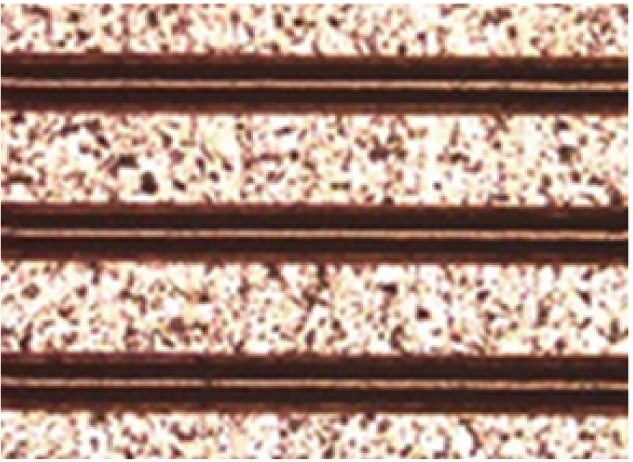

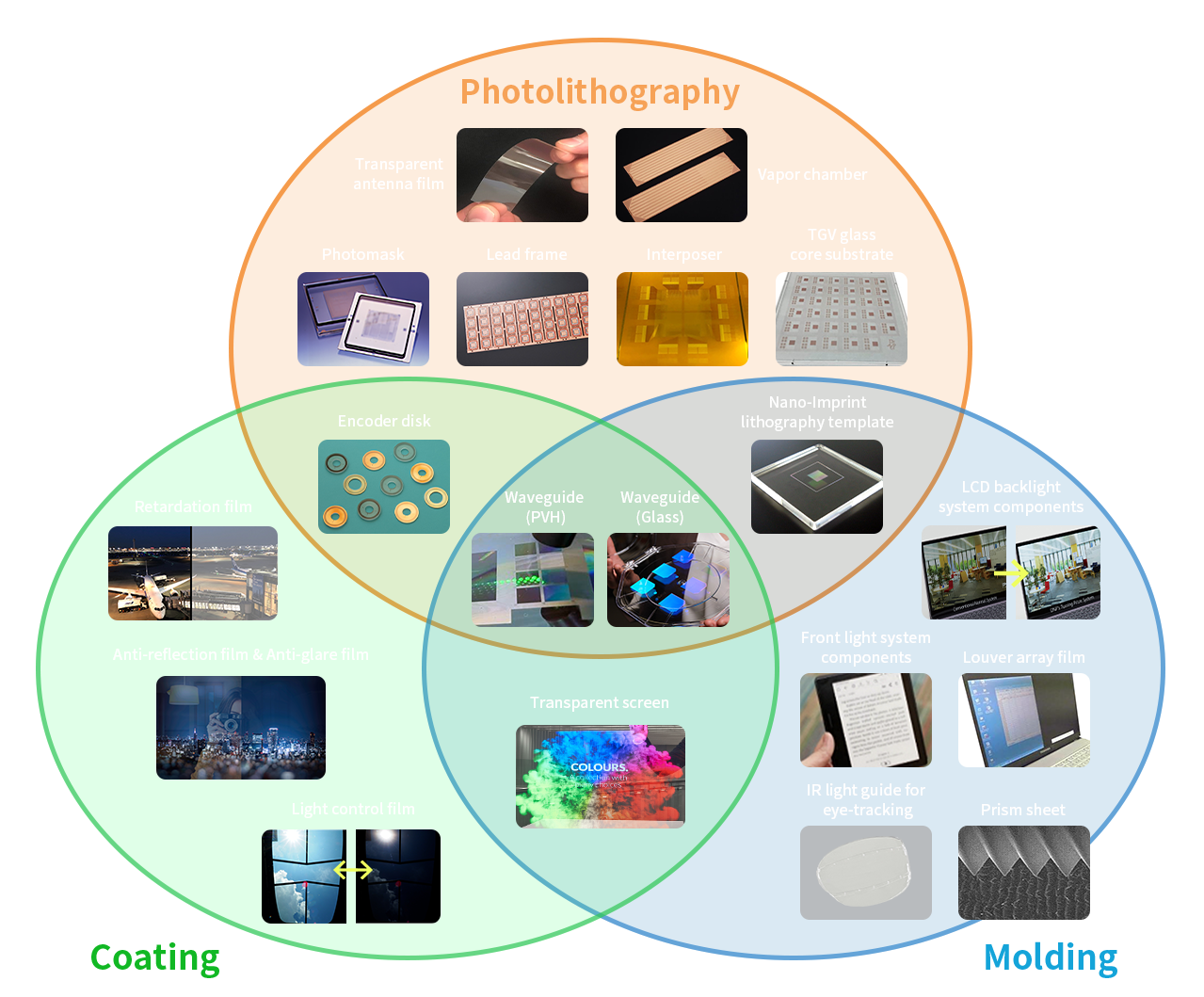

DNP offers one of the world's most advanced fine patterning, precise coating, and ultra-fine etching techniques. Especially this year, we will mainly exhibit products and technologies related to XR applications.
For more information of our technologies and products, please visit this link as well.
For more information of our technologies and products, please visit this link as well.
Exhibited Products
and Technologies
DNP products for AR glasses
1
RF communication
Transparent antenna film
Shown in the Mockup
3
Display
・・aveguide・・
・・aveguide・・
PVH type
SRG type
Shown in the Mockup
4
Sensing
IR light guide for
eye-tracking
eye-tracking
Shown in the Mockup
2
Heat dissipation

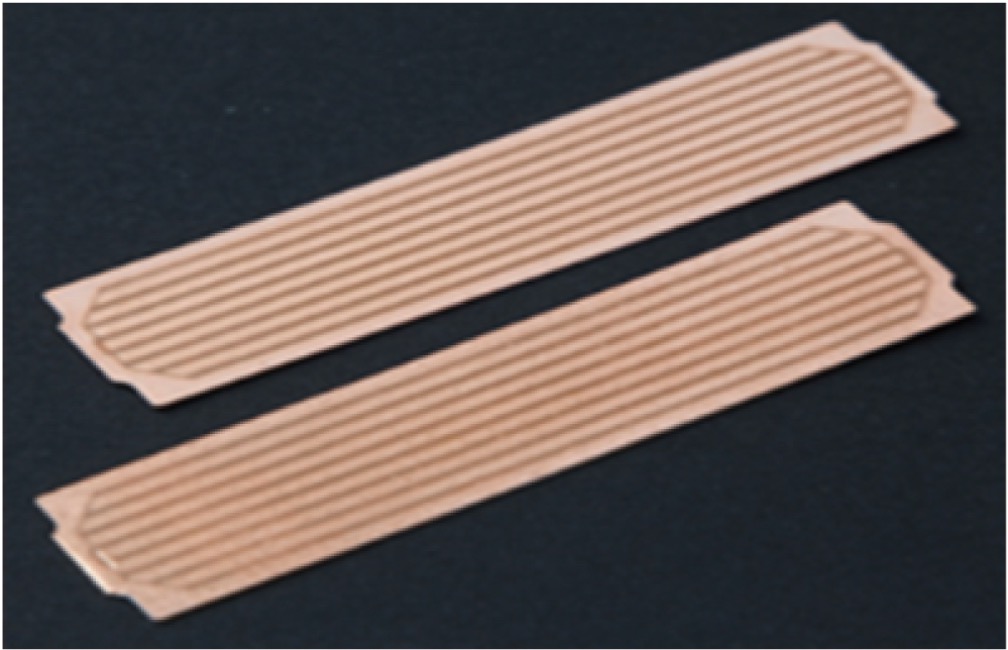

Vapor chamber
Shown in the Mockup
IR light guide for eye-tracking
IR light guide for eye-tracking is a flat light guide that illuminates an eye with infrared light placed on the sides.
DetailsTransparent antenna film
A fine mesh film with high transparency and conductivity. Invisibly fine metal wiring is formed on transparent film to add antenna functionality without compromising the design.
DetailsMLA for microdisplays / sensors
Using microfabrication technologies (ex. EB drawing), can provide Microlenses with nano meter position accuracy.
DetailsDepolarizer
The depolarizer converts linearly polarized light to randomly polarized light.
Improves visibility of display while using polarized sunglasses.
Meta-surface
Meta-surface optics can be thinner and smaller than traditional optics in IR and Visible wavelength region.
DNP's nano-fabrication technology can deliver wider meta-surface products.
Light control film
Light control film can instantaneously switch between clear and dark state with an electrical charge by Guest-Host Liquid Crystal (GHLC) method.
Details
Reflect array
(passive and static)
Can improve UL and DL throughput by compensating for the straightness of 5G/6G radio waves.
The shape of the reflected wave is designed to allow radio waves to reach a wide area.
Please watch the following video for more information
on our exhibition contents.
1:12
Products and technologies
exhibited at SID2024
Waveguide for AR Glasses
Detail
Transparent antenna film
Detail
LC-DOE (Liquid Crystal - Diffractive Optical Element)
Detail
Light control film
Detail
Formable Functional Film
Detail
Collimator Lens-Embedded Diffractive Optical Element (CL- DOE)
Detail
Low Birefringence Polymer
Detail
Light Source for Eye-Tracking
Detail
Detail
Transparent antenna film
Detail
LC-DOE (Liquid Crystal - Diffractive Optical Element)
Detail
Light control film
Detail
Formable Functional Film
Detail
Collimator Lens-Embedded Diffractive Optical Element (CL- DOE)
Detail
Low Birefringence Polymer
Detail
Light Source for Eye-Tracking
Detail

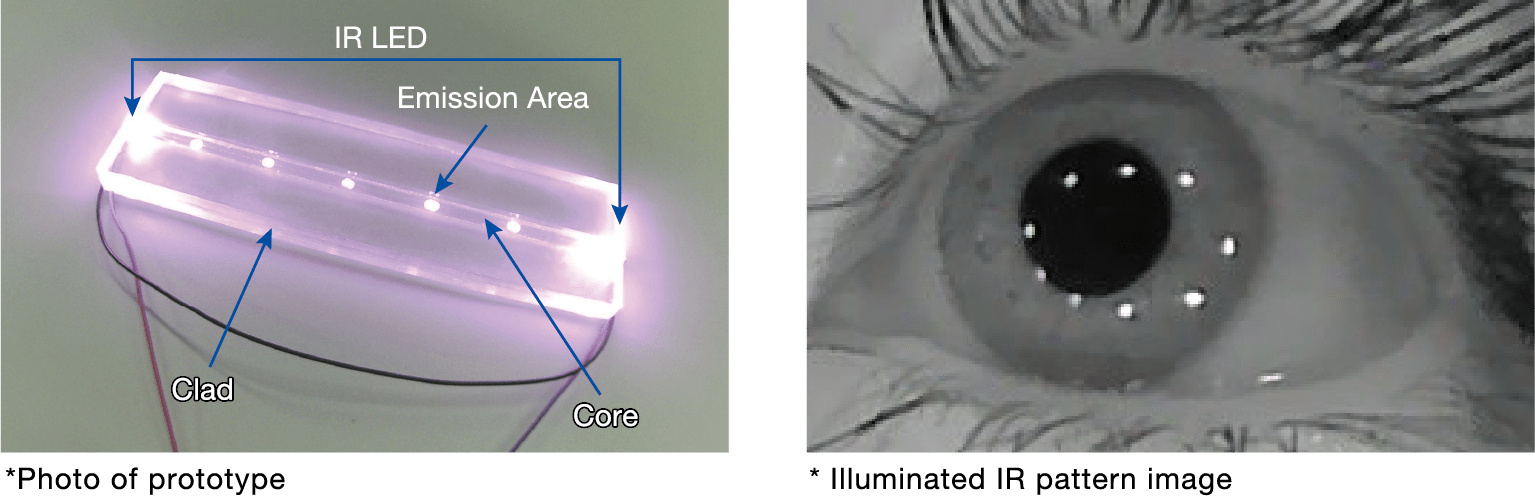

IR light guide for eye-tracking *Under development
SUMMARY AND ADVANTAGES
- IR light guide for eye-tracking is a flat light guide that illuminates an eye with infrared light placed on the sides.
-
The advantages are:
・Delivers light to an eye without sacrificing design aesthetics
・Reduces the number of IR-LEDs
FEATURES
- Thin and light weight light guide
- Clad/Core structure works as optical waveguide.
APPLICATIONS
- Eye-tracking for XR devices(smart glasses and HMDs)

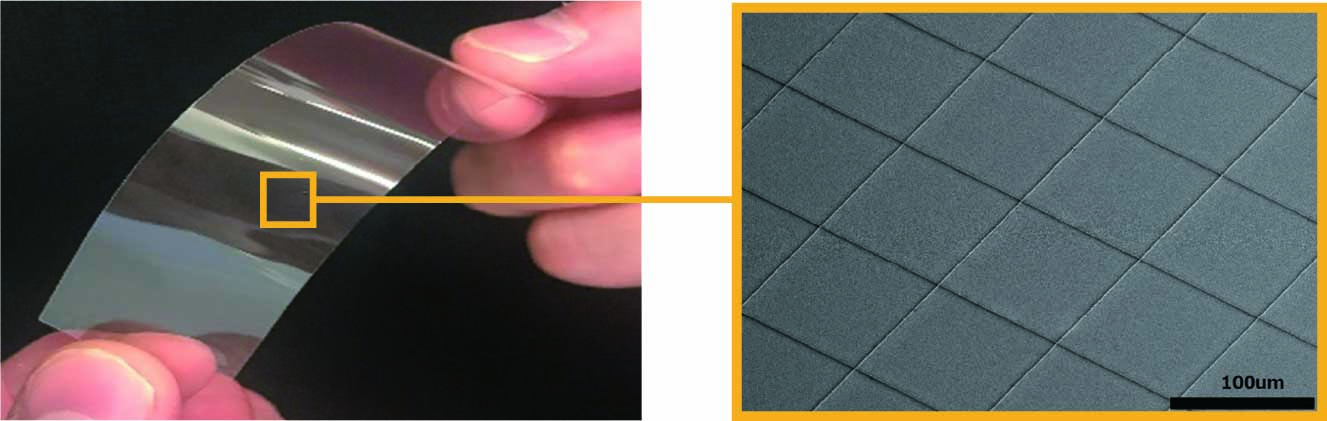

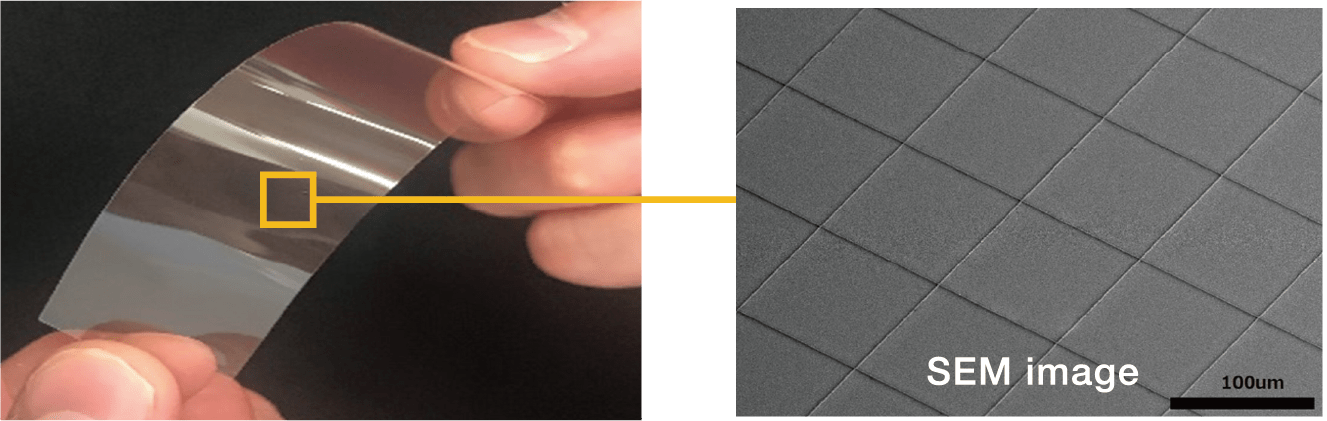

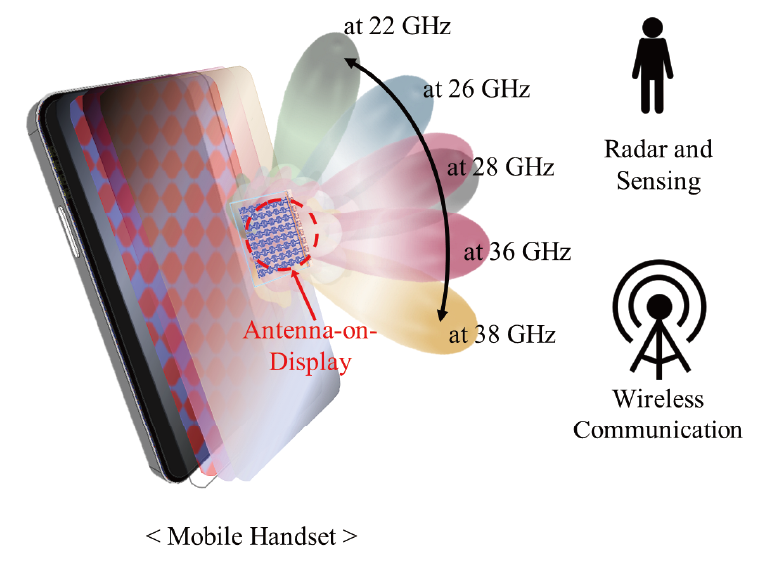

Transparent antenna film *Under development
SUMMARY AND ADVANTAGES
- A fine mesh film with high transparency and conductivity.
- Invisibly fine metal wiring is formed on transparent film to add antenna functionality without compromising the design.
FEATURES
- High Transparency : Total Transmittance 88%+
- Low Resistivity : Sheet Resistance 1-2N/sq
- Antenna Gain : 10dBi
- Broad Band : 22-38GHz
APPLICATIONS
- Smartphones, tablets, AR/VR glasses, wearable devices, etc.
- ISAC(Integrated sensing and communication)

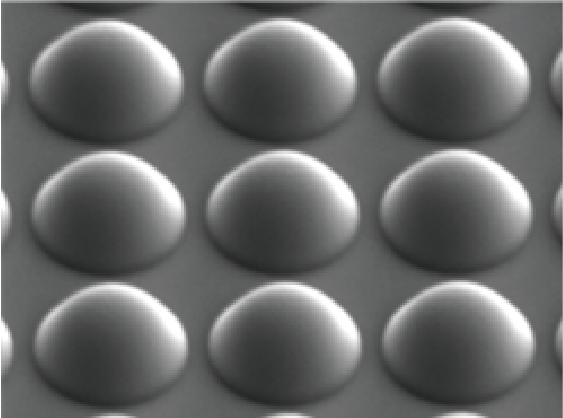

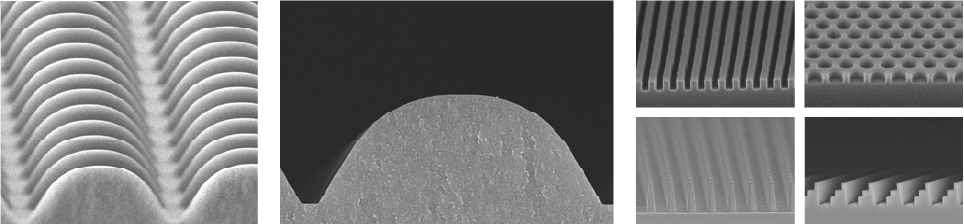

MLA for microdisplays / sensors *Under development
SUMMARY AND ADVANTAGES
- Using precise microfabrication technologies (ex. EB drawing), can provide Microlenses with nano meter position accuracy.
FEATURES
- High-definition lenses with high aspect ratio(1:1)
(sweet spot is 1-3um width/height) - Close packed lens density
- Various shape capability - Hemisphere, Cubic
APPLICATIONS
-
Light Engine for AR glasses/HUD
- Enhance brightness of OLEDOS/LEDOS - CCD/CMOS image sensor
-
Optical components for Co-Packaged Optic
(coupling lens, collimation lens)

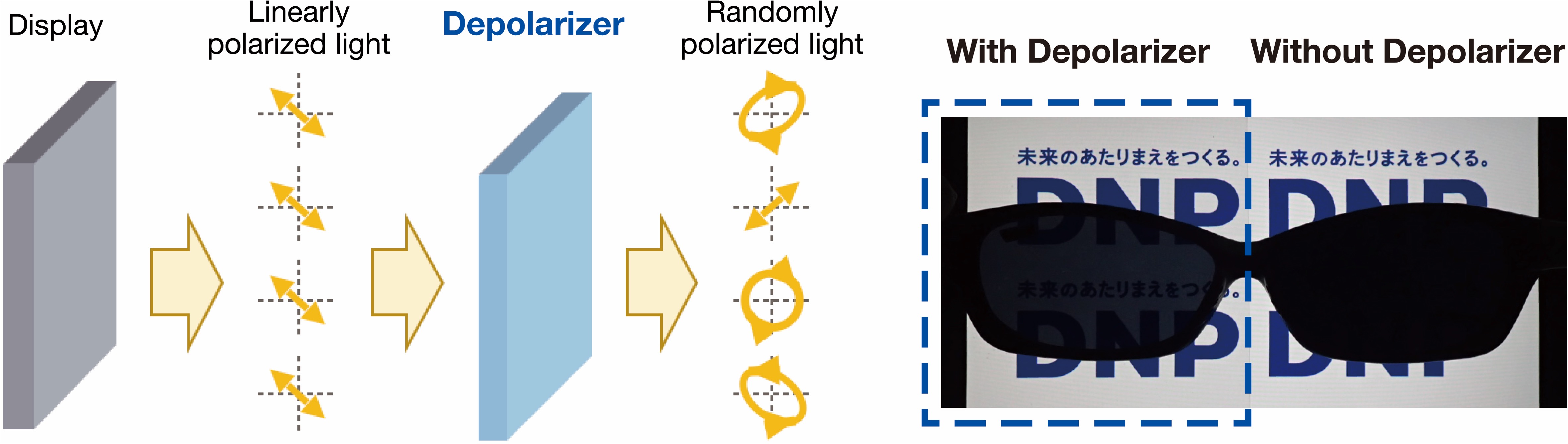

Depolarizer *Under development
SUMMARY AND ADVANTAGES
- The depolarizer converts linearly polarized light to randomly polarized light.
- Improves visibility of display while using polarized sunglasses.
FEATURES
APPLICATIONS
Sunglass friendly displays. It eliminates blackout without rainbow mura issue.
- Digital signage display
- Automotive display
- Mobile/wearable display

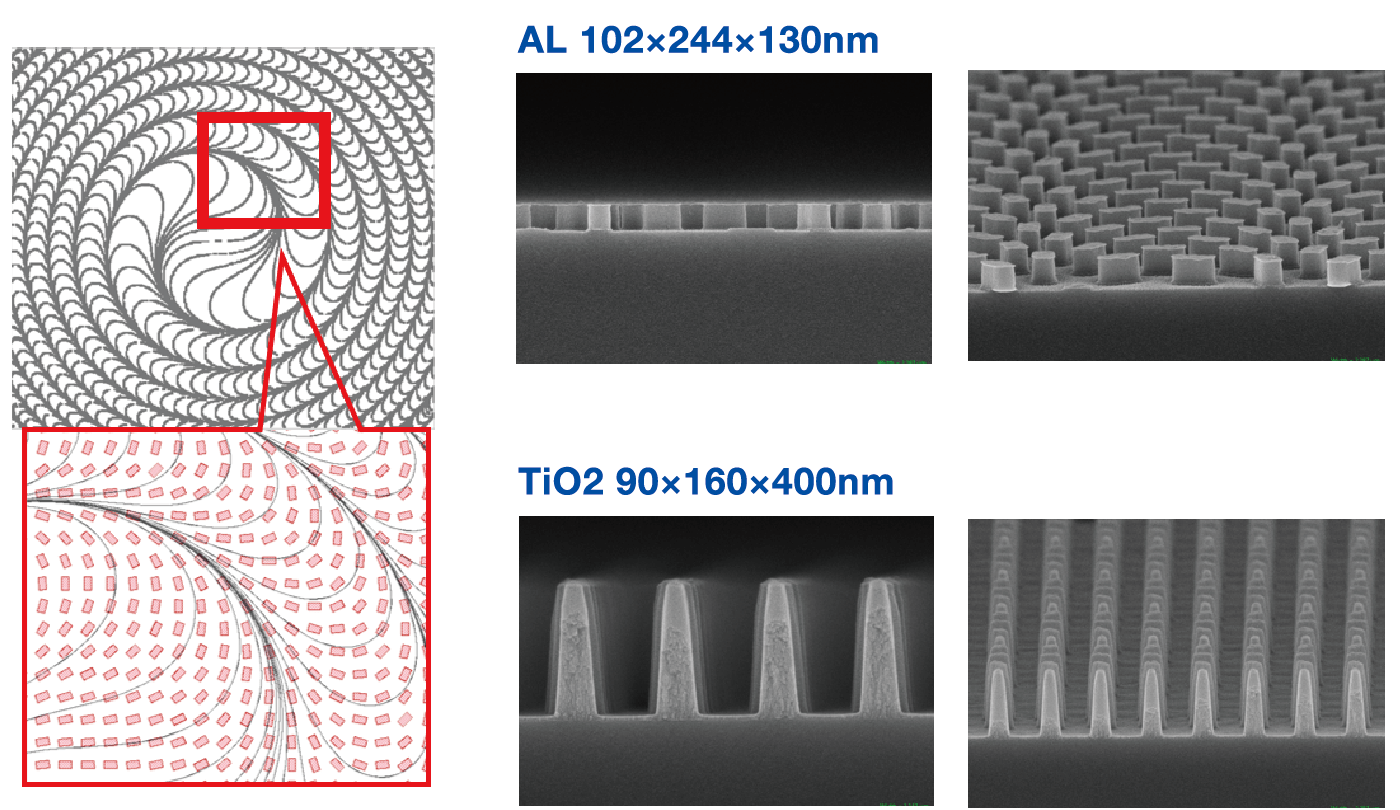

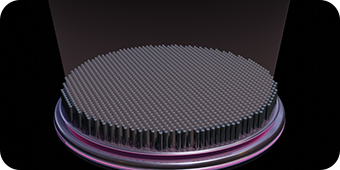

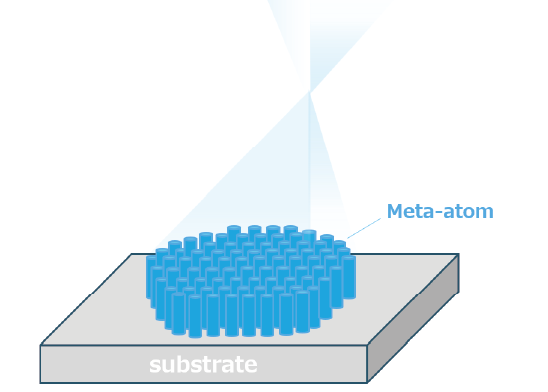

Meta-surface *Under development
SUMMARY AND ADVANTAGES
- Meta-surface optics can be thinner and smaller than traditional optics in IR and Visible wavelength region.
- DNP's nano-fabrication technology can deliver wider meta-surface products.
FEATURES
- Multiple types of patterns in larger area (6笶・substrate)
- High RI material(TiO2) and metal(AL)
APPLICATIONS
Applied for planar optics, low chromatic aberration and polarization separation purpose
- AR glasses
- AR-HUD
- Lenses
- Sensor

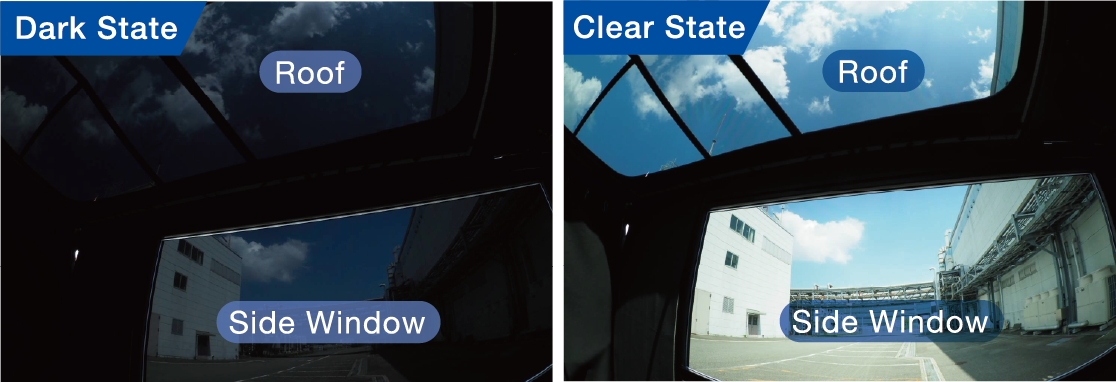

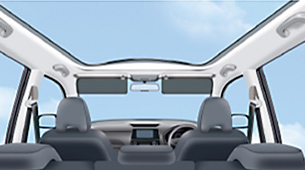

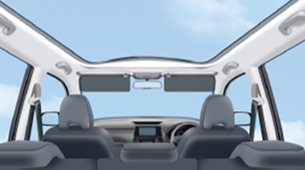

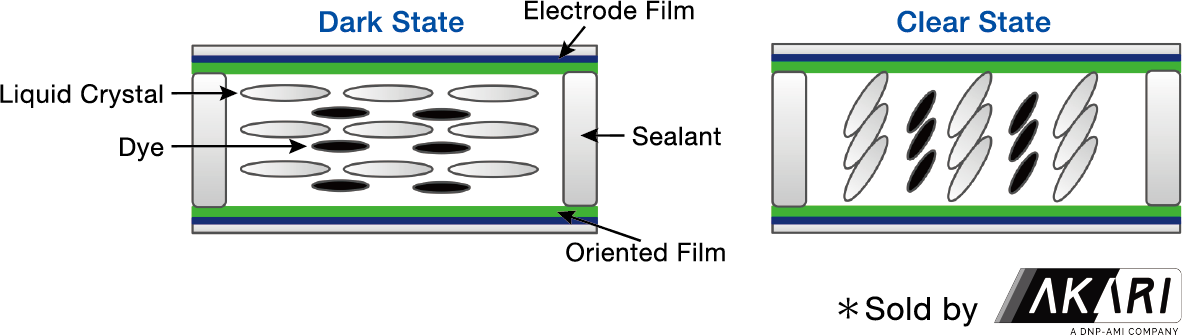

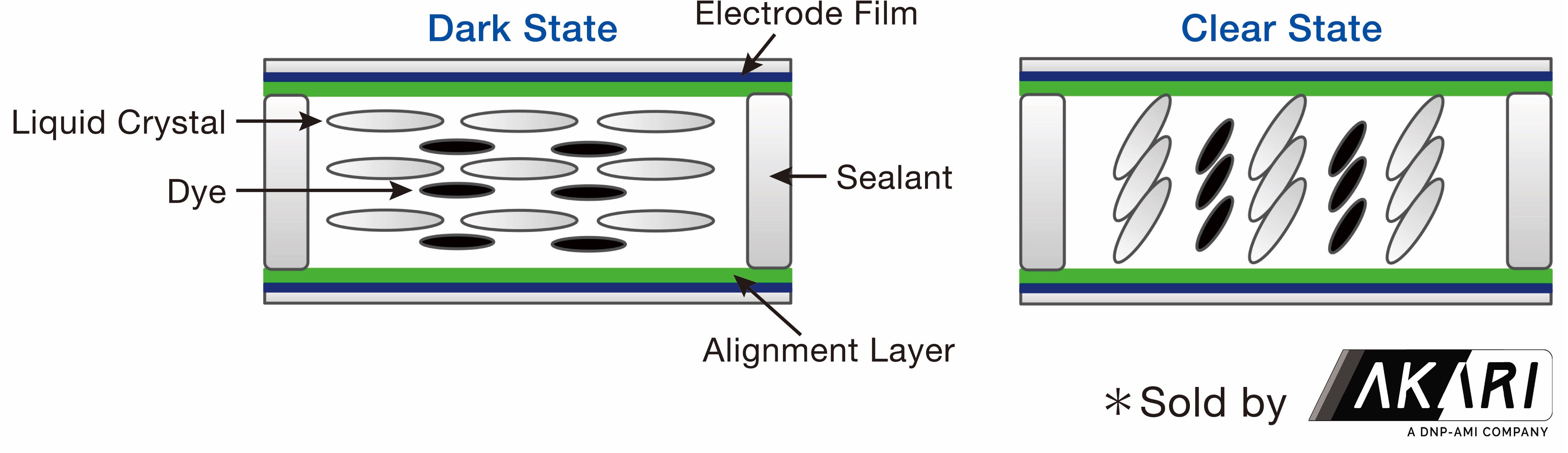

Light control film *Under development
SUMMARY AND ADVANTAGES
- Light control film can instantaneously switch between clear and dark state with an electrical charge by Guest-Host Liquid Crystal (GHLC) method.
FEATURES
- Fast Switching Speed (1 sec)
- Low haze (1%)
- Color Reproducibility (Neutral Black)
- Low voltage requirement (≦30V)
- Possible to laminate on curved surfaces
- Capable of segmented design
APPLICATIONS
-
Automotive
Smart and anti-glare functions for window glass such as sunroofs,side & cabin mirrors, and sun visors -
Display
Contrast improvement for transparent display

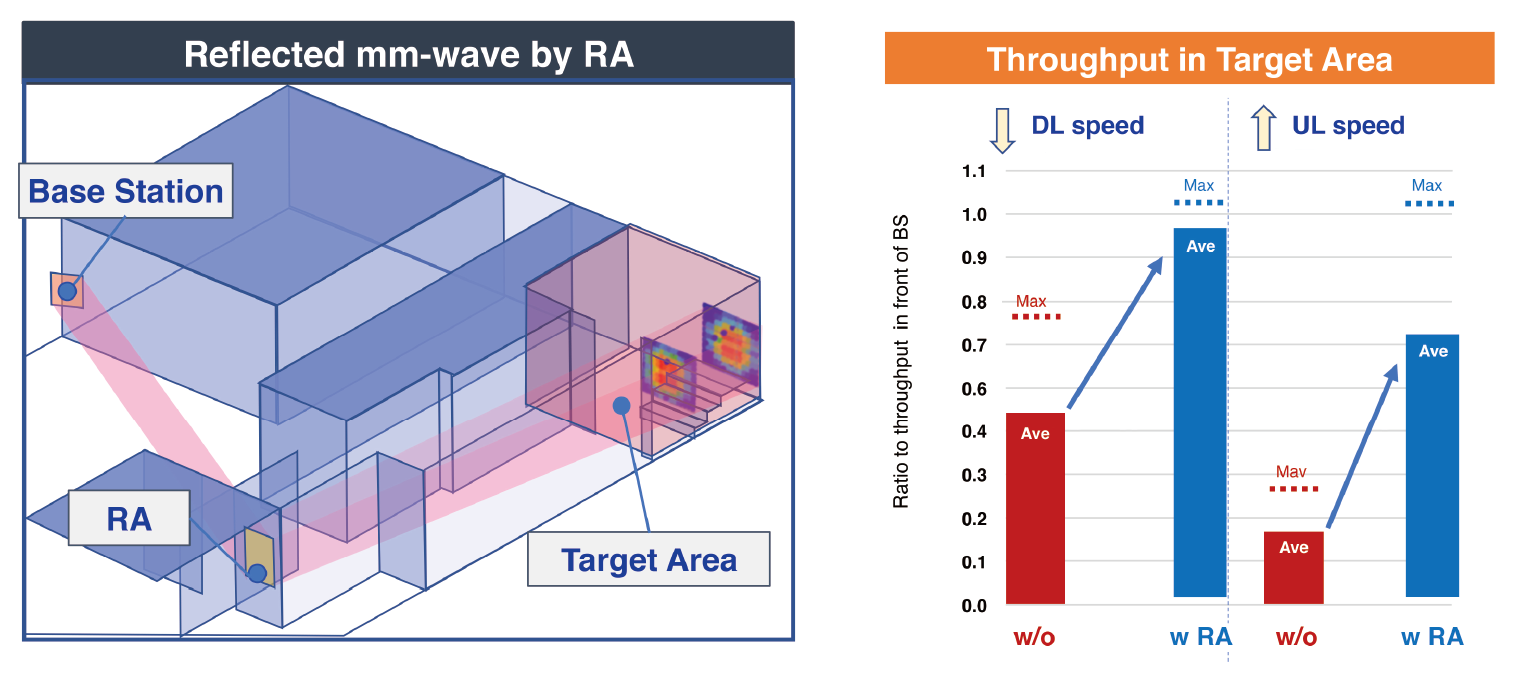

Reflect array (passive and static) *Under development
SUMMARY AND ADVANTAGES
- Can improve UL and DL throughput by compensating for the straightness of 5G/6G radio waves.
- The shape of the reflected wave is designed to allow radio waves to reach a wide area.
- A wide range of exterior design options that do not detract from the scenery.
FEATURES
- Can support FR1, FR2, or FR3 (3GHz to Sub THz)
- Incident angle and the spread of the reflected beam can be freely designed.
- Passive Array (Non-Electric)
APPLICATIONS
- Extend the coverage area and eliminate dead zone even if it's interrupted by physical barriers such as complex buildings, factory, office and stadium.

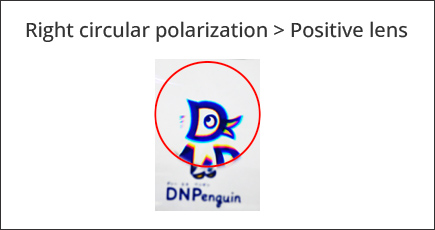

LC-DOE (Liquid Crystal - Diffractive Optical Element)
SUMMARY AND ADVANTAGES
- LC-DOE is a thin film-like optical element that can diffract light.
- The direction of diffracted light depends on the direction of polarization of incident light.
- DNP is developing this with using "Roll-to-Roll process"
FEATURES
- Thin (~50μm) / Flexible.
- High flexibility in aspheric phase design.
- Broadband wavelength types are also available.
APPLICATIONS
- Lens (chromatic aberration compensation in refractive lenses)
- LiDAR (solid state beam steering device)

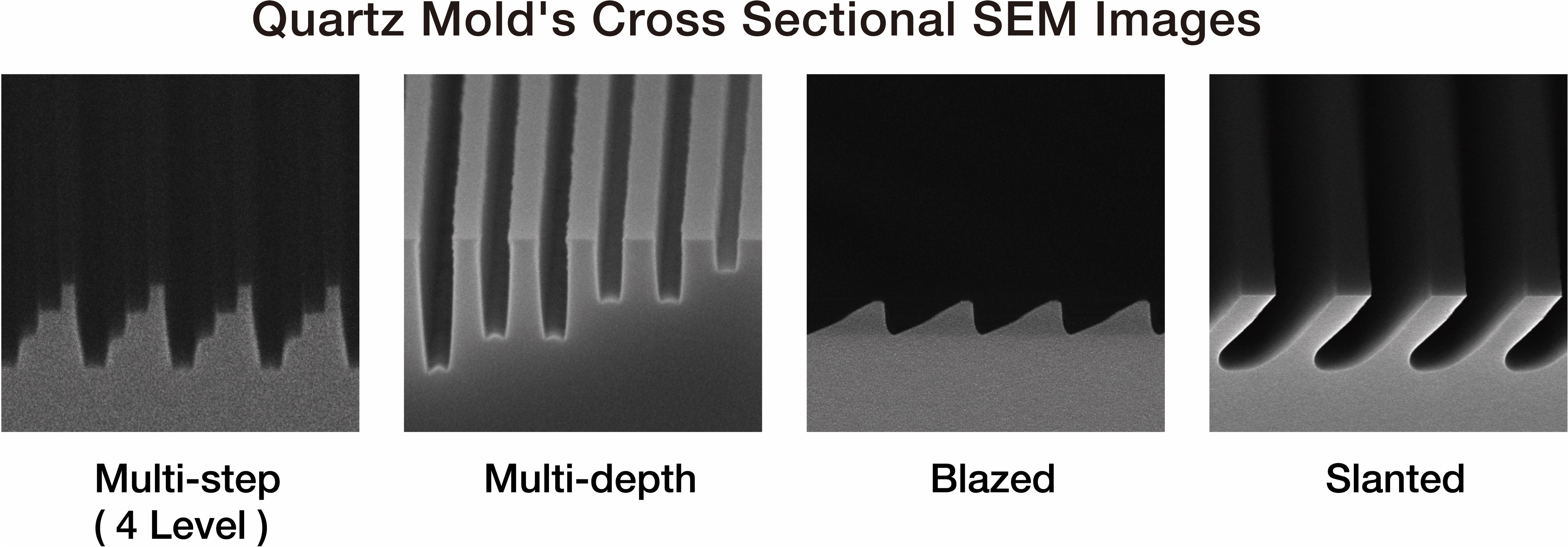

Waveguide for AR Glasses
SUMMARY AND ADVANTAGES
- DNP has established a "one-step-shop solution" for the AR glasses market,from mold fabrication to device safer manufacturing.
- We are pursing mass production oh high precision waveguides for AR glasses by talking advantage of the superiority of a "hard-to-hard" imprinting process through an alliance with SCIVAX Inc.
FEATURES
- Good pattern fidelity
- Good alignment imprint capability
- Low distortion

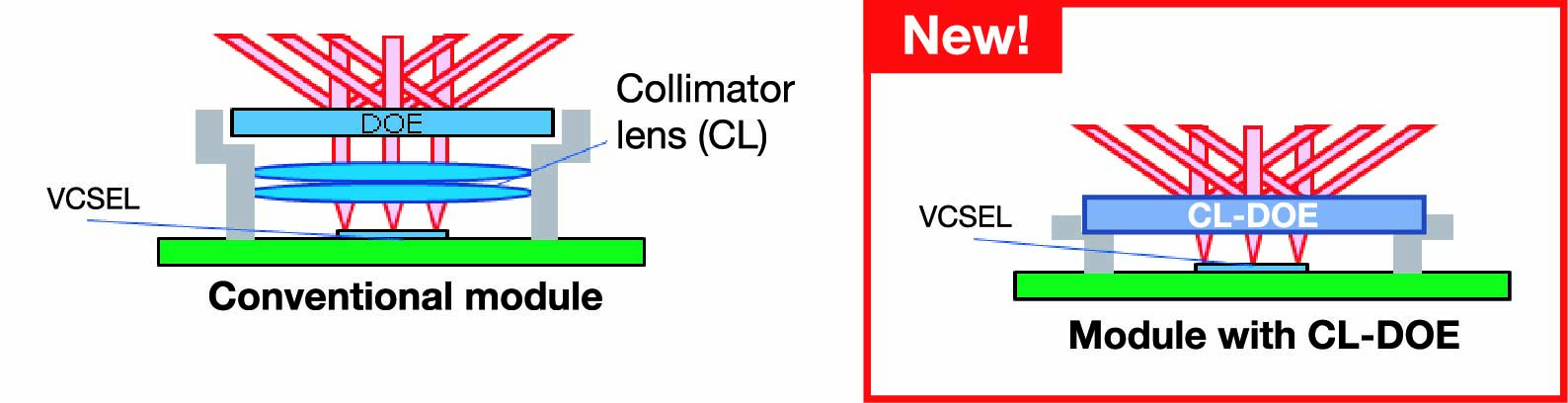

Collimator Lens-Embedded Diffractive Optical Element (CL-DOE)
SUMMARY AND ADVANTAGES
- We have developed a new type of DOE in which the functions of a collimator lens and DOE are integrated using DNP's optional design,master mold fabrication, and nanoimprinting capabilities.
FEATURES
- Simplified module configuration
- No need for alignment between collimator lens and DOE
- High diffractive optical performance and functions
APPLICATIONS
- Facial recognition
- 3D sensor

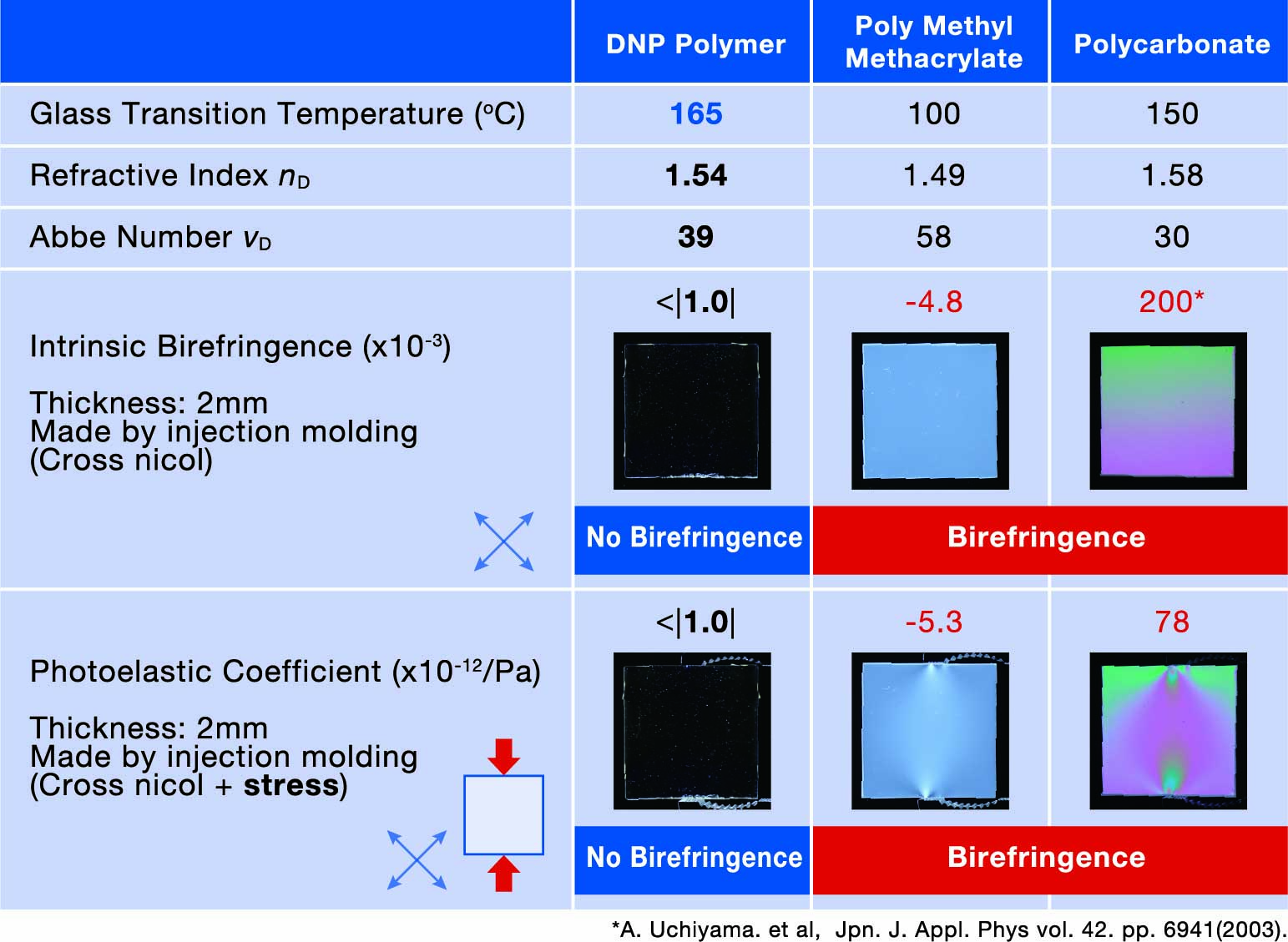

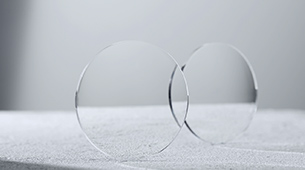

Low Birefringence Polymer
SUMMARY AND ADVANTAGES
- Birefringence causes light leakage and image focus distortion.
- DNP's polymer has almost zero birefringence and a high glass transition temperature.
FEATURES
- Low birefringence and low photoelastic coefficient
- High glass transition temperature
- High light resistance
APPLICATIONS
- Plastic lens for XR devices and cameras

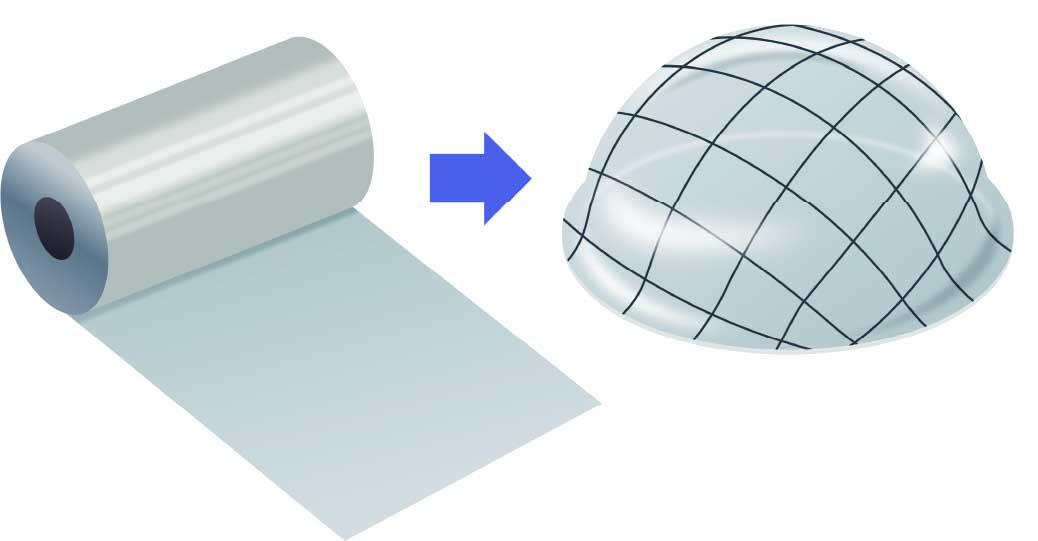

Formable Functional Film
SUMMARY AND ADVANTAGES
- Through utilizing DNP's optical expertise, we have developed formable functional films for a variety of different 3D-shaped applications.
FEATURES
- 3D molding
- High transparency
- Wet coating & Roll to Roll
APPLICATIONS
- 3D Formable Transparent Film for EMI Shielding
- Formable Anti-Reflection Film
Formable Functional Film
SUMMARY AND ADVANTAGES
- Through utilizing DNP's optical expertise, we have developed formable functional films for a variety of different 3D-shaped applications.
FEATURES
- 3D molding
- High transparency
- Wet coating & Roll to Roll
APPLICATIONS
3D Formable Transparent Film for EMI Shielding
Formable Anti-Reflection Film
Transparent antenna film
SUMMARY AND ADVANTAGES
- Fine mesh film with high transparency and conductivity.
- Invisible fine metal wrring on transparent film enables antenna functionalities without compromising the design.
FEATURES
- High Transparency:Total Transparency > 88%
- Low Resistivity:Sheet Resistance 1-2Ω/sq
- Optimized optional properties are achievable
APPLICATIONS
- Smartphones,tablets,AR/VR glasses,wearable devices, etc.

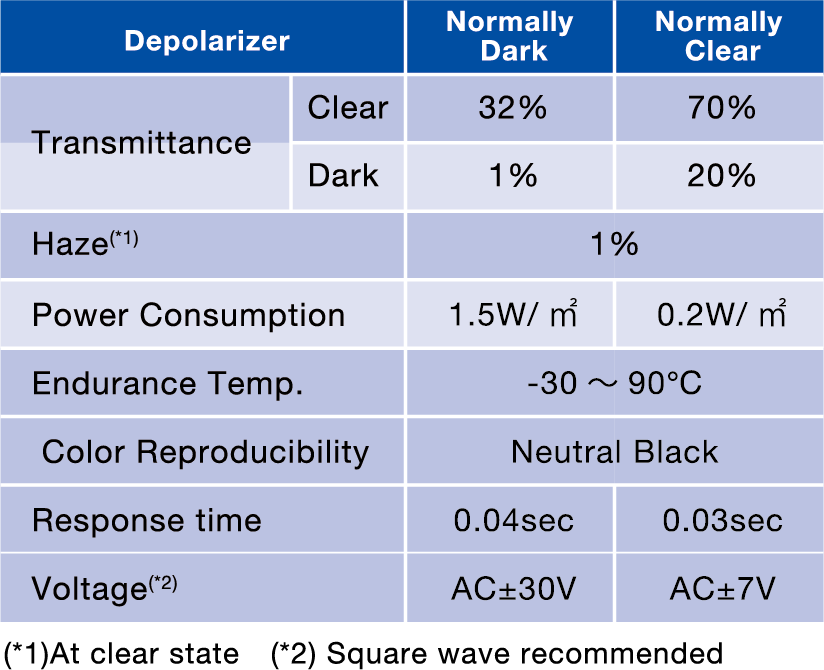

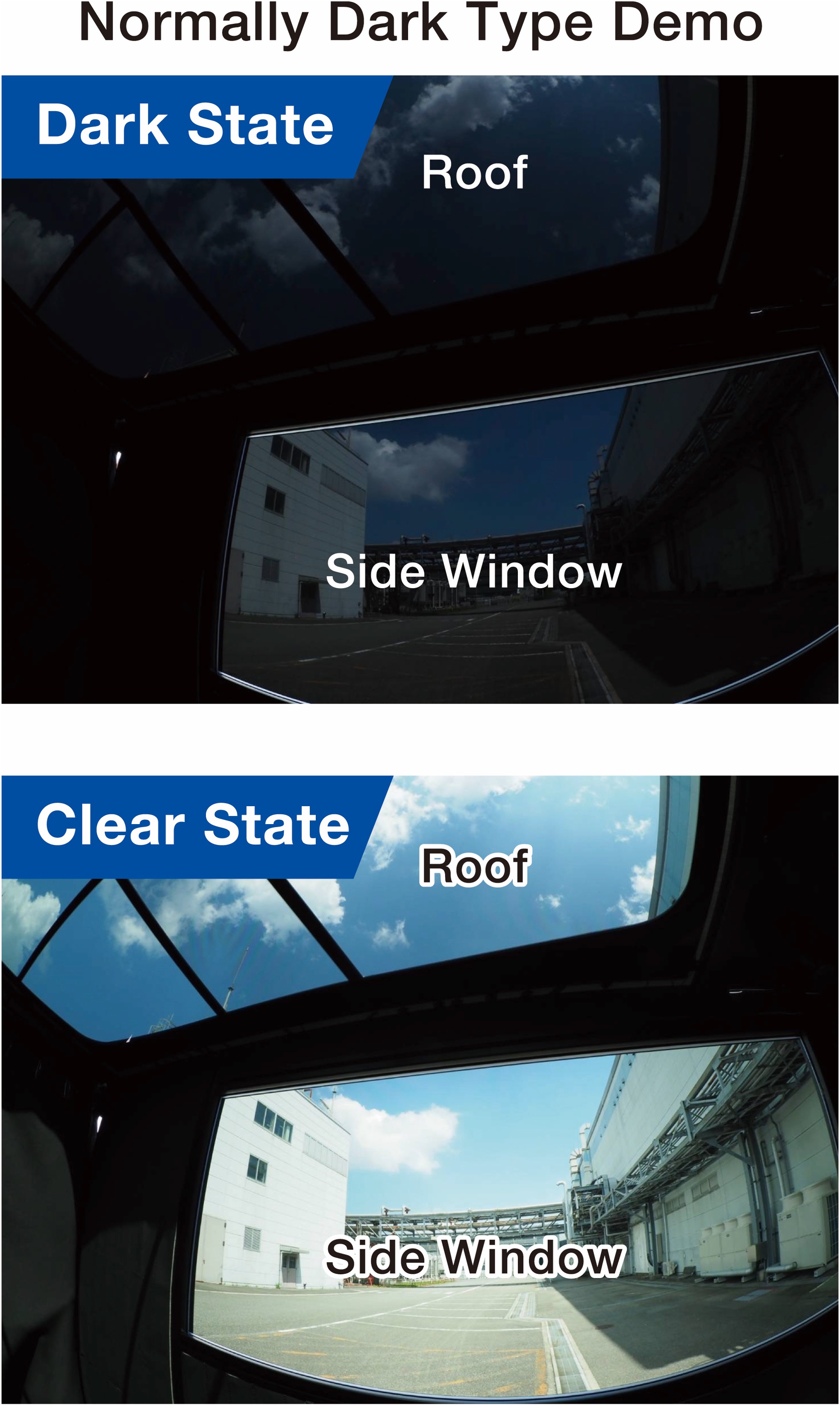

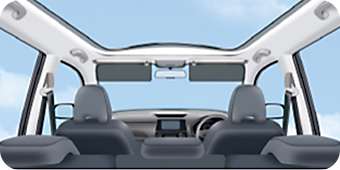

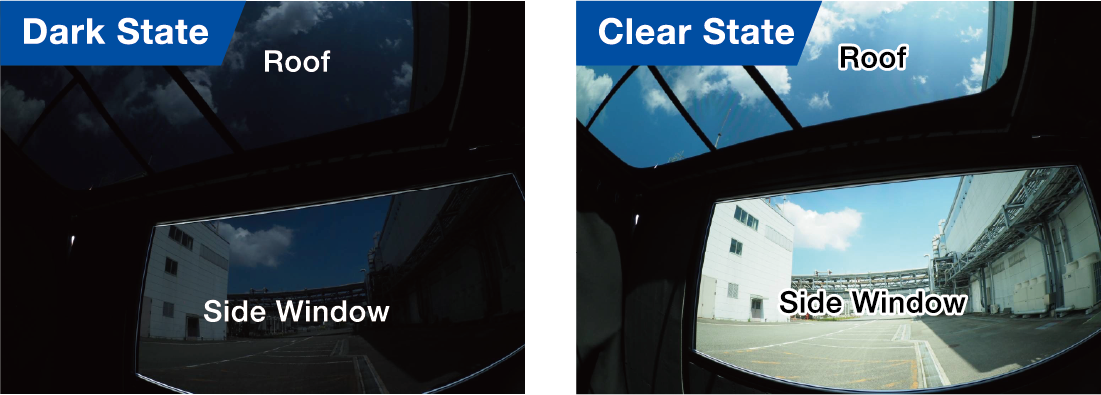

Light control film
SUMMARY AND ADVANTAGES
- Light control film can instantaneously switch between clear and dark state with an electrical charge by Guest-Host Liquid Crystal (GHLC) method.
FEATURES
- Fast switching speed (≦ 1sec)
- Low haze (1%)
- Color reproduciblilty (Neutral Black)
- Low voltage requirement (≦30V)
- Possible to laminate on curved surfaces
- Capable of segmented design
APPLICATIONS
- Automotive : Smart and anti-glare functions for windows glass such as sunroofs, side & cabin mirrors, and sun visors.
- Display : Contrast improvement for transparent display.
Light Source for Eye Tracking
SUMMARY AND ADVANTAGES
- Multiple lights are emitted to a user's eye through a light guide that is placed on a frame or lens.
- By using a light guide with multiple radiation points,the number of LEDs can be reduced when compared to general "eye tracking" system.
- The assembly process can be simplified by reducing the number of required components.
FEATURES
- Reduction of LEDs
- Simpler assembly process
- Device miniaturization
APPLICATIONS
- Eye Tracking for XR devices (Smart Glass, HMD)
