The fusion of art and high performance coatings, enriching our shared architectural landscape
DNP Aluminum Decor Panel for Interior and Exterior
DNP Aluminum Decor Panel, a high-value added aluminum panel series, provides unique & rich expressions for interior, semi-exterior and exterior applications for architectural projects.
See 11 related fields

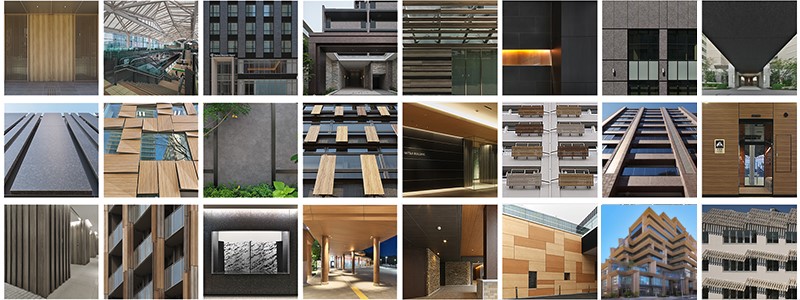

PROJECTS
Please refer to our projects. https://livingspace.dnp.co.jp/arttec/project/index.html
Contact us(Open in a new window)
Designs
DNP Aluminum Decor Panel allows us to create various designs with innovative textures that help solve the natural inherent issues associated with wood, stone & metal.
ART ALUMINUM
Series of items utilizing aluminum substrate itself to achieve true metal aesthetic.
Phosphate Treatment Finish
Sulfide Finish

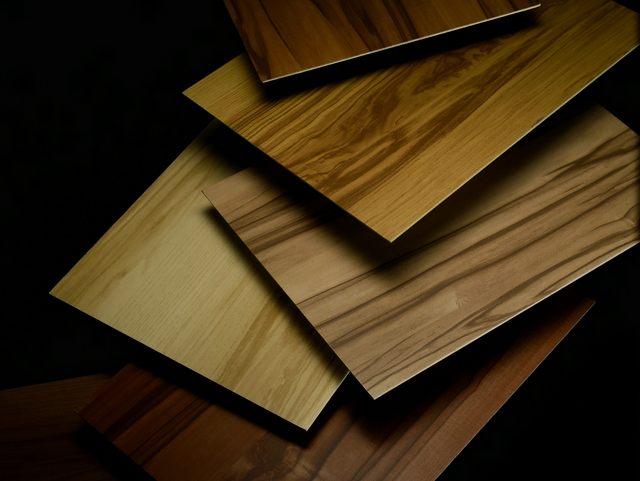

Woodgrain Pattern on aluminum foundation
Phosphate Treatment Finish
Corten Finish
Woodgrain Pattern on aluminum foundation
MATERIAL ART
Series of Engineered Natural Material(wood, stone, etc. finishes)
Phosphate Treatment Finish
Onyx Finish

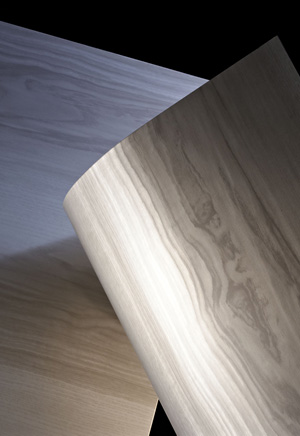

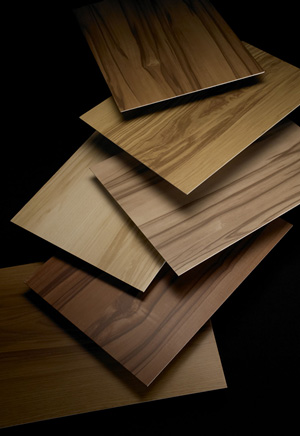

Woodgrain Pattern
Ceramic Finish
Terracotta Finish
Abstract Pattern with Pearlescent Pigment
* DNP Aluminum Decor Panel is a made-to-order product and the above pictures are examples of its design & texture capabilities.
Please contact us for further information about design development for it.
SHAPES
DNP Aluminum Decor Panel can be processed and formed into various architectural material such as Louvers and Panels for application in a wide range of usage.

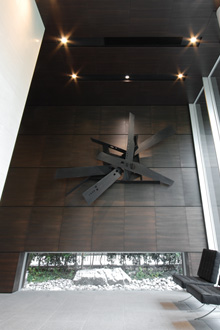

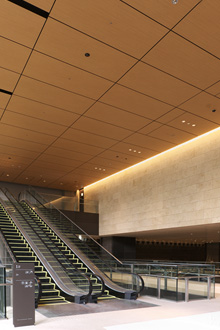

FLAT PANELS
CONSTRUCTION DRAWING

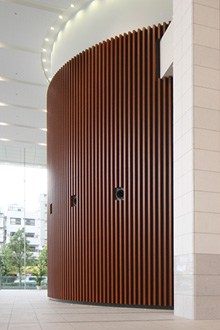

LOUVERS
CLOSE-UP
SPECIFICATION
|
|---|

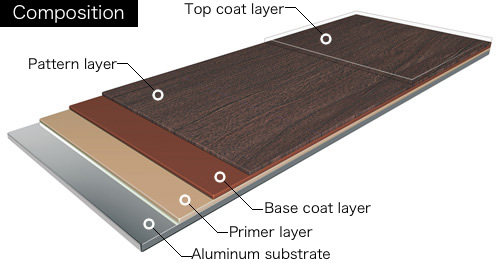

DNP Aluminum Decor Panel is manufactured by DNP’s unique production process, which could be printed and coated directly on aluminum substrate. DNP Aluminum Decor Panel is applicable for interior, semi-exterior and exterior in various shapes by the making the best use of the combination of DNP's proprietary printing and coating technology.
Non-combustibility
ASTM E84 *1
NM-2698 (Certified in Japan)(Fluoropolymer)
*1 Only results tested by the third party according to these standard for specific specs.
Manufacturing Capabilities
Print Width : 620mm–1250mm
Print Length : 1500mm–4500mm
Aluminum Thickness : 0.6mm–3.0mm
Weatherability
Exterior fluorin coating
Spec:
Sunshine Weather O Meter Test
No remarkable color change or discoloration for 10,000h meet AAMA2605 standard
Others
-Low Maintenance Work
-100％ Recyclable
-Capability of flexible small of quantity production
-Made from at least 20% post-consumer recycled content
-VOC free
-LBC 3.1 Red List free
* Print on steel substrates and stainless steel substrates are also available.
DNP Aluminum Decor Panel is a made-to-order product and produced by DNP Ellio Co., Ltd.
Please contact us if you need additional information about specifications.
