Artellion
DNP’s Artellion, a high-value added aluminum panel series, provides unique and rich expressions for interior, semi-exterior and exterior applications for architectural projects.
Designs
Artellion allows us to create various designs with innovative textures that help solve the natural inherent issues associated with wood, stone & metal.
Art Aluminum
Series of items utilizing aluminum substrate itself to achieve true metal aesthetic.
Material Art
Series of Engineered Natural Material(wood, stone, etc. finishes)
Design variation
MATERIAL ART
Satin Finish
ASN001
Phosphate(Dark)
ART ALUMINUM
Satin Finish
ASN002
Phosphate(Middle)
ART ALUMINUM
Satin Finish
ASN101
Phosphate(Silver)
MATERIAL ART
Satin Finish
ASN102

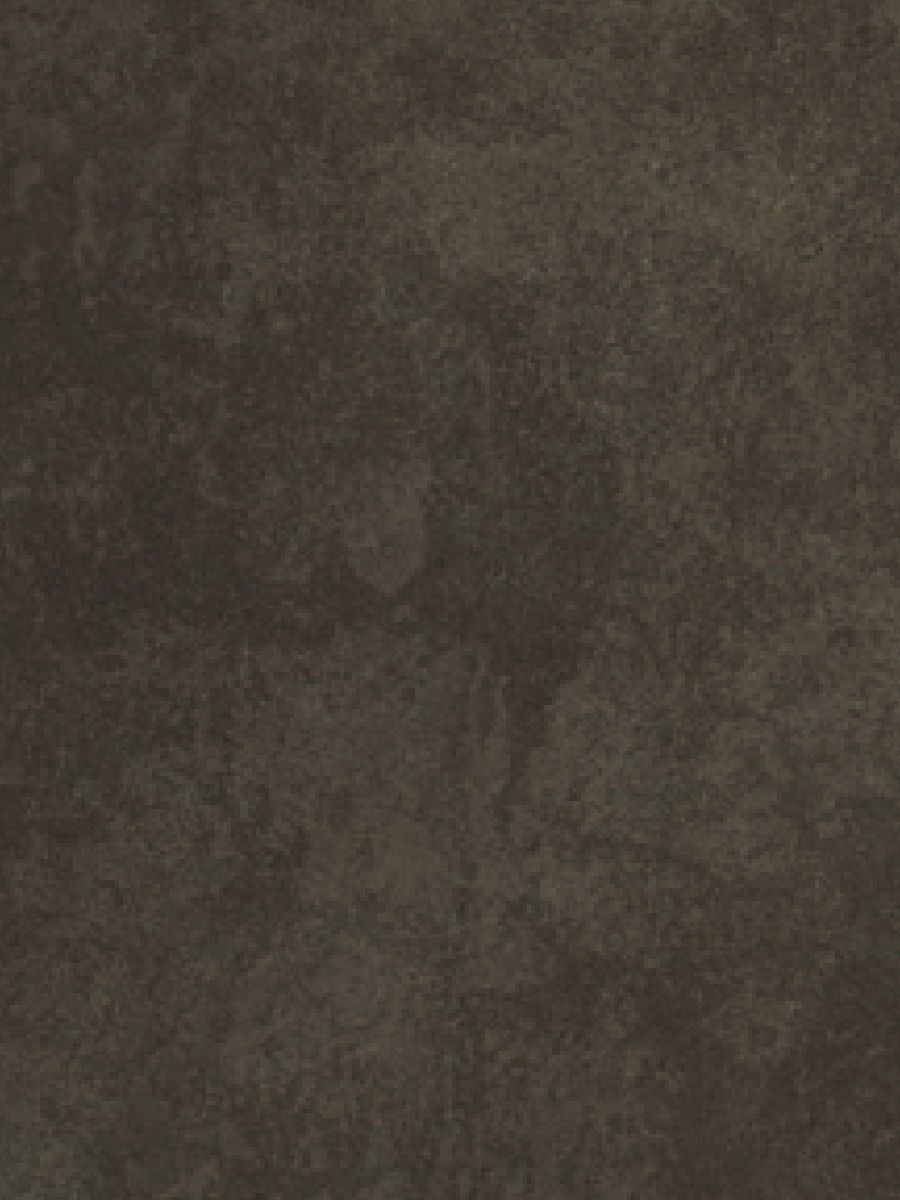

Blackened Metal
ART ALUMINUM
Elegant Finish
ASN103
Sulfide Oxidized
MATERIAL ART
Satin Finish
ASN104

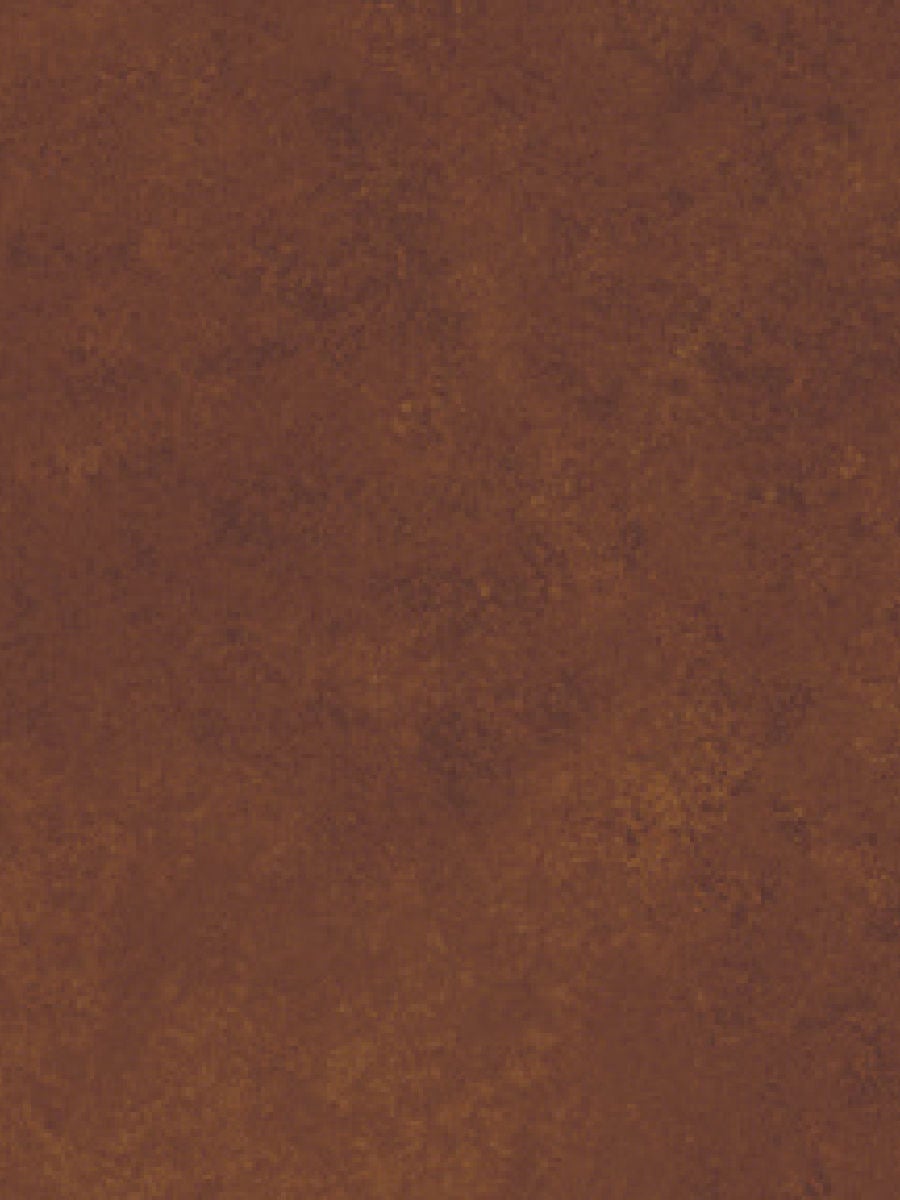

Corten Copper
ART ALUMINUM
Elegant Finish
ASN105
Bronze
MATERIAL ART
Satin Finish
ASN009

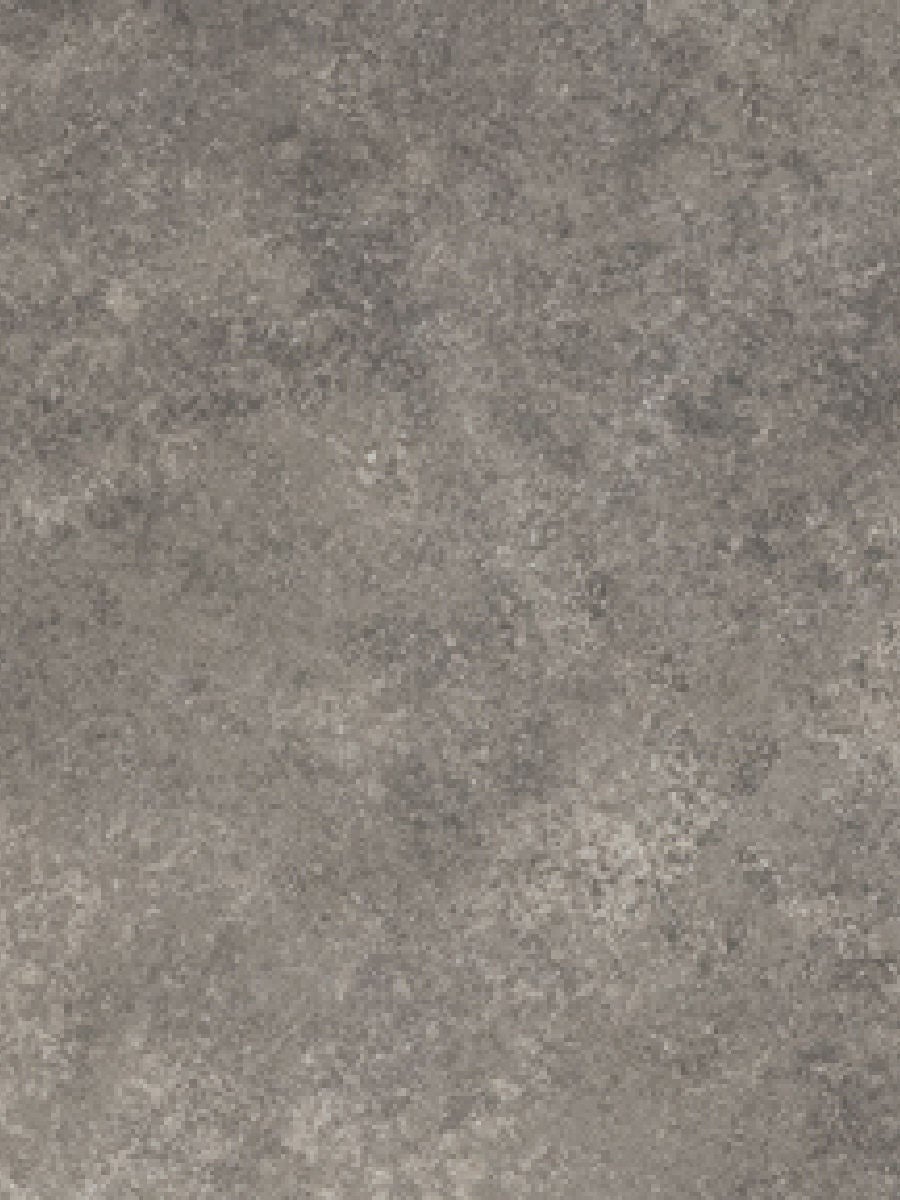

Stone
MATERIAL ART
Satin Finish
ASN106

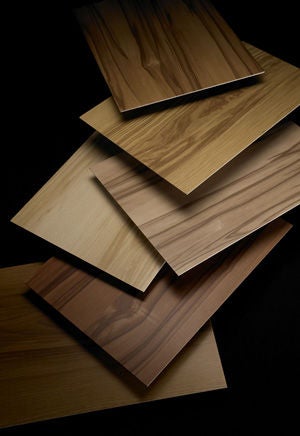

Woodgrain(Elm)
MATERIAL ART
Satin Finish
ASN107

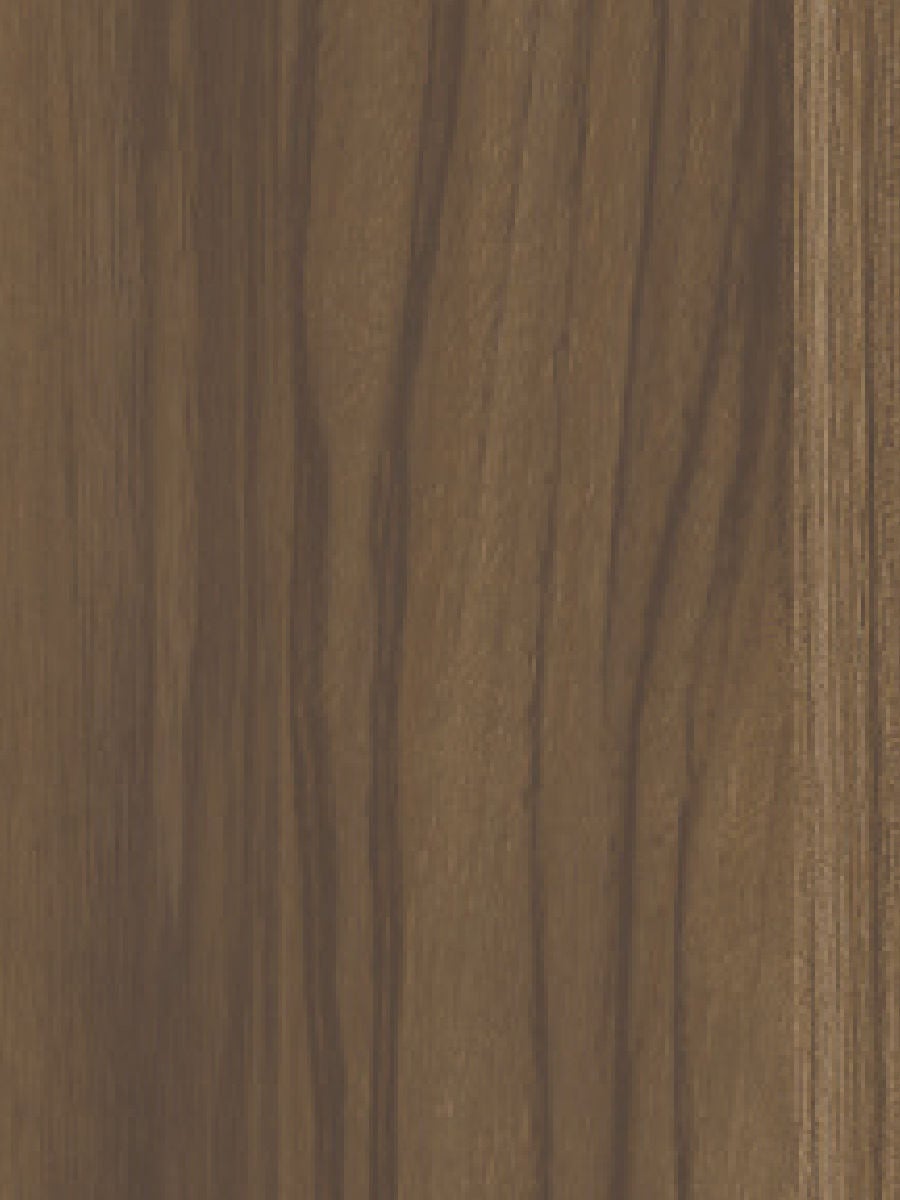

Woodgrain(Walnut)
ART ALUMINUM
Elegant Finish
ASN108
Metal+Woodgrain
MATERIAL ART
Satin Finish
ASN109
Abstract(Pastel Blue)
MATERIAL ART
Gloss Matte Finish
ASN110
Ceramic
MATERIAL ART
Gloss Matte Finish
ASN111
Patina
MATERIAL ART
Gloss Matte Finish
ASN112
Lime Stone
MATERIAL ART
Gloss Matte Finish
ASN113
Abstract(Vivid Blue)
* Artellion is a made-to-order product and the above pictures are examples of its design & texture capabilities.
Please contact us for further information about design development for it.
Shapes
Artellion can be processed and formed into various architectural material such as Louvers and Panels for application in a wide range of usage.

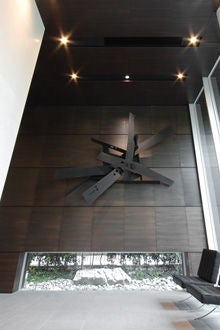

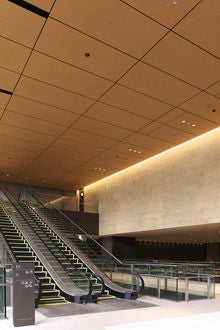

Flat panels

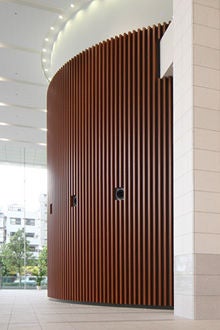

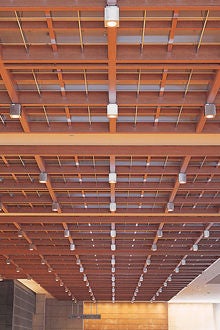

Louvers
Construction drawing
Close-up
Specification

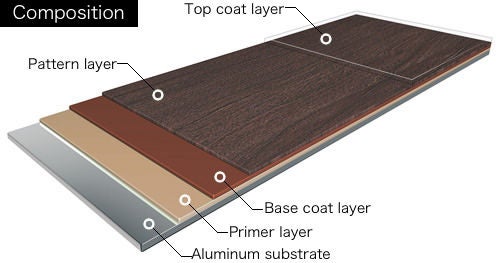

Artellion is manufactured by DNP’s unique production process, which could be printed and coated directly on aluminum substrate. Artellion is applicable for interior, semi-exterior and exterior in various shapes by the making the best use of the combination of DNP's proprietary printing and coating technology.
Non-combustibility
BS 476 Part 6/Part 7 :Category 1 *1
ASTM E84 *1
NM-2698 (Certified in Japan)(Fluoropolymer)
*1 Only results tested by the third party according to these standard for specific specs.
Manufacturing capabilities
Print Width : 620mm–1250mm
Print Length : 1500mm–4500mm
Aluminum Thickness : 0.6mm–3.0mm
Weatherability
Exterior fluorin coating
Spec:
Sunshine Weather O Meter Test
No remarkable color change or discoloration for 10,000h meet AAMA2605 standard
Others
-Low Maintenance Work
-100％ Recyclable
-Capability of flexible small of quantity production
-Made from at least 20% post-consumer recycled content
-VOC free
-LBC 3.1 Red List free
* Print on steel substrates and stainless steel substrates are also available.
Artellion is a made-to-order product and produced by DNP Ellio Co., Ltd.
Please contact us if you need additional information about specifications.
