Card printer
DNP CX-D80 retransfer card printer is the culmination of technological development. It is an innovative printer for all types of card issuance application. Building on the success of the widely adopted DNP CX printers, the CX-D80 features a thermal retransfer printing engine that is renowned for its quality and reliability. Ideal for gift cards, on-demand ID cards, and corporate and government ID cards, the CX-D80 integrates proven, long-established technology with a compact, user-friendly design.
Products
CX-D90HS: NEW 600dpi Printer
- Resolution: 600 dpi
- Double side
Improvements
- Offers enhanced printing speed (25 secs for single side with full color)
without compromising on color fidelity
(Note: 30 secs for single side with full color by CX-D80 series) - Increased card storage capacity (120 cards)
- Improved cards’ transport mechanism to decrease card's jam
- Storage space for small computer
- Enlarged LCD monitor to improve visibility
- Easy to check remaining volume for consumables by LCD monitor
Product features
- Compatible with existing ink-ribbon and re-transfer film
- Compatible with existing laminator
- Perfect edge-to-edge printing with glossy photo finish quality
- Damage-free printhead by retransfer method
- Ideal for contact/contactless card and PVC card
- Single or Double side model available
- Highest capacity YMCK ribbon (1,000 images), less frequency of reloading
- Electronic (hopper & front door), and Kensington locks installed
- Smart body & design suitable for every location
- Intellectual status Monitor Program to see the printer status
- User-friendly accessories to keep the printer clean
- Optional laminating module (CL-600S, CL-600D) connectable
Specifications
| Printing method | Dye sublimation/resin thermal retransfer |
|---|---|
| Printable area | Full-bleed (edge-to-edge) |
| Print speed | 25 sec : YMCK on single side |
| Interface | ・USB2.0(Ver2.0) Full-speed(12Mbps) / Hi-speed(480Mbps) ・10BASE-T/100 BASE-TX Ethernet |
| Card type | PVC, Composite PVC, PET-G, ABS, etc. |
| Input & output capacity | 120 cards each (0.76mm thickness) |
| Dimension | W346 x D322 x H360 (mm) |
| Weight | 13.5kg (Single side with no optional unit) |
| Power supply | Maximum 3A (100 to 120V), Maximum 1.5A (220 to 240V) |
| Operating environment | 15℃ – 30℃, 35% – 70% non condensing humidity |
| Ink ribbon | YMCK, YMCKK, YMCKUv, YMCKPo |
| Options | Magnetic stripe encoding, Contact chip encoding, Contactless IC encoding, Bend remedy unit, Lamination unit(CL-600S/CL-600D) |
| Safety standard/regulation | FCC, CE, UL, VCCI-B, FCC Class B, EN Class B, RoHS, CCC |
Card printer
CX-D80HS
- Resolution: 600 dpi
- Double side
CX-D80SRS,CX-D80DS
- Resolution: 300 dpi
- CX-D80DS : Double side
- CX-D80SRS: Single side, Bend remedy unit is originally installed
Product features
- Perfect edge-to-edge printing with glossy photo finish quality
- Damage-free printhead by retransfer method
- Ideal for contact/contactless card and PVC card
- Single or Double side model available
- Highest capacity YMCK ribbon (1,000 images), less frequency of reloading
- Electronic (hopper & front door), and Kensington locks installed
- Smart body & design suitable for every location
- Intellectual status Monitor Program to see the printer status
- User-friendly accessories to keep the printer clean
- Optional laminating module (CL-600S, CL-600D) connectable
Specifications
| Printing method | Dye sublimation/resin thermal retransfer |
|---|---|
| Printable area | Full-bleed (edge-to-edge) |
| Print speed | 30 sec : YMCK on single side |
| Interface | ・USB2.0(Ver2.0) Full-speed(12Mbps) / Hi-speed(480Mbps) ・10BASE-T/100 BASE-TX Ethernet |
| Card type | PVC, Composite PVC, PET-G, ABS, etc.* |
| Input & output capacity | 100 cards each (0.76mm thickness) |
| Dimension | W343 x D322 x H335 (mm) |
| Weight | 13.0kg (Single side with no optional unit) |
| Power supply | Maximum 3A (100 to 120V), Maximum 1.5A (220 to 240V) |
| Operating environment | 15℃ – 30℃, 35% – 70% non condensing humidity |
| Ink ribbon | YMCK, YMCKK, YMCKUv, YMCKPo |
| Options | Magnetic stripe encoding, Contact chip encoding, Contactless IC encoding, Bend remedy unit, Lamination unit(CL-600S/CL-600D) |
| Safety standard/regulation | FCC, CE, UL, VCCI-B, FCC Class B, EN Class B, RoHS, CCC |
Ink ribbon
DNP is a world-famous manufacturer of dye-sublimation ink ribbons and has developed ink ribbons for DNP CX-series card printer. Its unique lateral card-conveyor system gives it one of the largest capacities in its class. In addition, a RFID tag installed in a ribbon enables you to check the ribbon type and remaining amount on the status monitor at a glance.

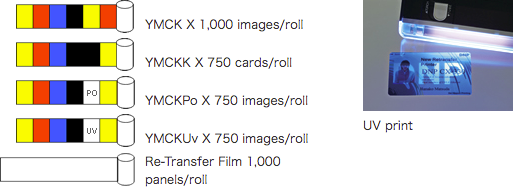

Ink ribbon lineup
| Product name | Product code | Number of images per set/roll |
|---|---|---|
| YMCK Ink ribbon set | CY-P340A-DS | 1,000 images/set |
| YMCKK Ink ribbon roll | CY-35K-75DS | 750 images/roll |
| YMCKUv Ink ribbon roll | CY-35U-75DS | 750 images/roll |
| YMCKPo Ink ribbon set | CY-P35A-DS | 750 images/set |
| Re-transfer film | CY-3RA-100 | 1,000 images/roll |
Laminator
- CL-600S/CL-600D
- CL-600S: Sigle side laminator
CL-600D: Double side laminator
Product features
- Single side (CL-600S) and Double side (CL-600D)
- Simultaneous dual lamination with two cartridges (CL-600D)
- Improved function of patch-positioning adjustment in every direction
- Easy installation with CX-D80 by infrared communication
- Electronic (front door), and Kensington locks installed
- In accordance with application, various types of laminating media is available
- Customized hologram design with security features can be provided
- Smart body & design suitable for every location
- Intellectual status monitor program to see the laminator status
Specifications
| Laminating method | Thermal roller transfer |
|---|---|
| Laminating side | Single sided (CL-600S), Double sided (CL-600D) |
| Laminating speed | 16 – 36 sec per card : single, and double sided |
| Connection | Infrared communication with CX-D80 |
| Temperature config | 90℃ – 180℃ (adjustable on 5℃ basis) |
| Speed config | 3 mm/s - 12 mm/s (adjustable on 0.5 mm/s basis) |
| Dimension | W210 x D333 x H360 (mm) |
| Weight | CL-600S: 8.5kg CL-600D: 9.5kg |
| Power Supply | Maximum 3A (100 to 120V), Maximum 1.5A (220 to 240V) |
| Operating environment | 15℃ – 30℃, 35％ – 70％ non condensing humidity |
| Laminating media | 1.0/0.6mil patch, 1.0/0.6mil smart card patch, overlay foil |
| (Clear or holographic selectable for all the media) |

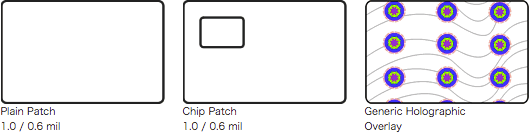

Laminate films
For CL-600S/CL-600D, we offer two types of media: patch film and overlay foil.
1.0/0.6 mil patch film provides all-round durability against abrasion, water, humidity and UV light, which can damage and deteriorate the printed image.
Adding a customised hologram to a patch makes it possible to create a completely unique and secure card in terms of anti-counterfeiting and physical protection.
Overlay foil has almost the same durability against water, humidity and UV light as the patch.
It has little durability against abrasion, but the hologram can be transferred across the entire card surface, unlike the patch film (which leaves a 2 mm space around the edge), making it ideal for card decoration.
DNP has one generic hologram design for the overlay and it is certainly possible to create your own design.
Laminate films lineup
| Product name | Product no. | Number of images |
|---|---|---|
| Clear full area 1.0 mil patch | CY-R10FC-60F | 600 images/roll |
| Clear full area 0.6 mil patch | CY-R06FC-60F | 600 images/roll |
| Clear smart card cut 1.0 mil patch | CY-R10SC-60F | 600 images/roll |
| Clear smart card cut 0.6 mil patch | CY-R06SC-60F | 600 images/roll |
| DNP Generic hologram overlay foil | CY-R00RD-100 | 1,000 images/roll |
