Laser Signal Projector

This lighting device can display various symbols, such as lines, arrows and text, with high resolution over long distance . It can be used for zoning, guidance, alerts etc. to improve safety and operating efficiency. Other excellent features of the device include its compact size and low energy-consumption which enable easy setting and long-term operation with small mobile batteries.

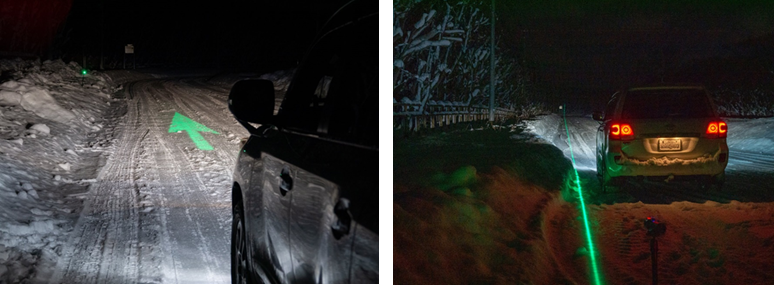

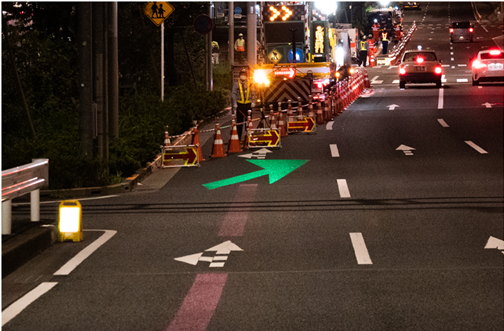

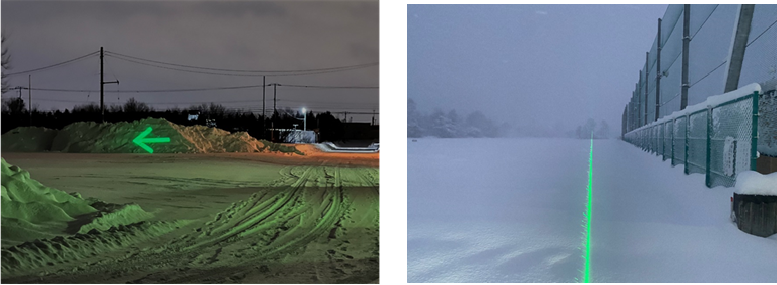

• Highly visible laser patterns
Projecting patterns with high brightness, contrast and resolution from near to far-end.

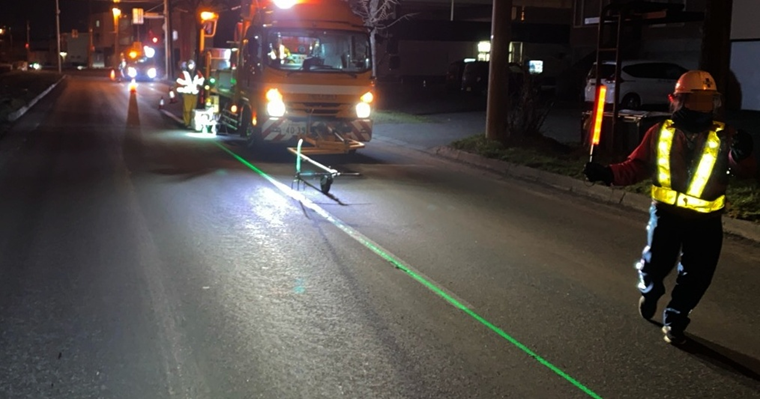

Line-type : Starting from a few meters toward up to 100 meters.
Arrow-type : Starting from a few meters toward several tens of meters ahead.

• Laser safety classification
This product is "class1 laser product" according to IEC60825-1 : 2014. The product is RG2 (Risk Group 2) as per IEC62471 : 2006.
Before using the product, please make sure that all safety requirements are fulfilled in accordance with local regulations.

• Low power consumption
- Optical throughput efficiency achieved by the novel design architecture.

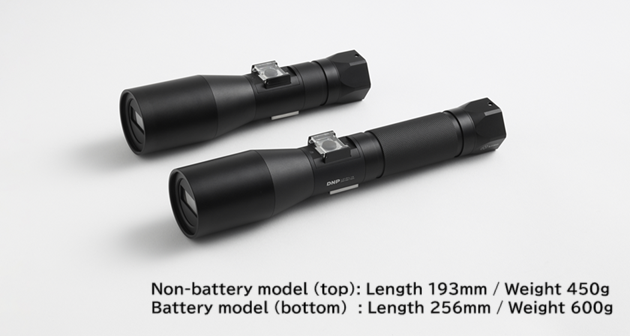

- Available in two models : battery-equipped inside or not.
- The battery-equipped model can be used for up to 3 hours in continuous mode and up to 6 hours in flickering mode.
Power supply: DC5V

*Battery-equipped models can also be used with external power supply (pass-through charging supported).

• Easy to install
- Small, light-weight and portable.
- Setting with a tripod or other mounts.
- Installation height : 1 meter or lower can be available.
