Easy and clean peel sterilization pouch for broad medical sterilization methods

DNP's Medical Sterilization Pouch

DNP’s medical sterilization pouch is the premier solution for user-friendly packaging. A proprietary heat-seal coating on the non-woven layer delivers a smooth, full-surface and clean peel while preserving a reliable sterile barrier. Compatible with EOG, gamma irradiation, E-beam, steam, and VHP cycles, this sterilization pouch brings together hygiene and ease of use across various medical sterilization methods.

See 11 related fields

See related articles

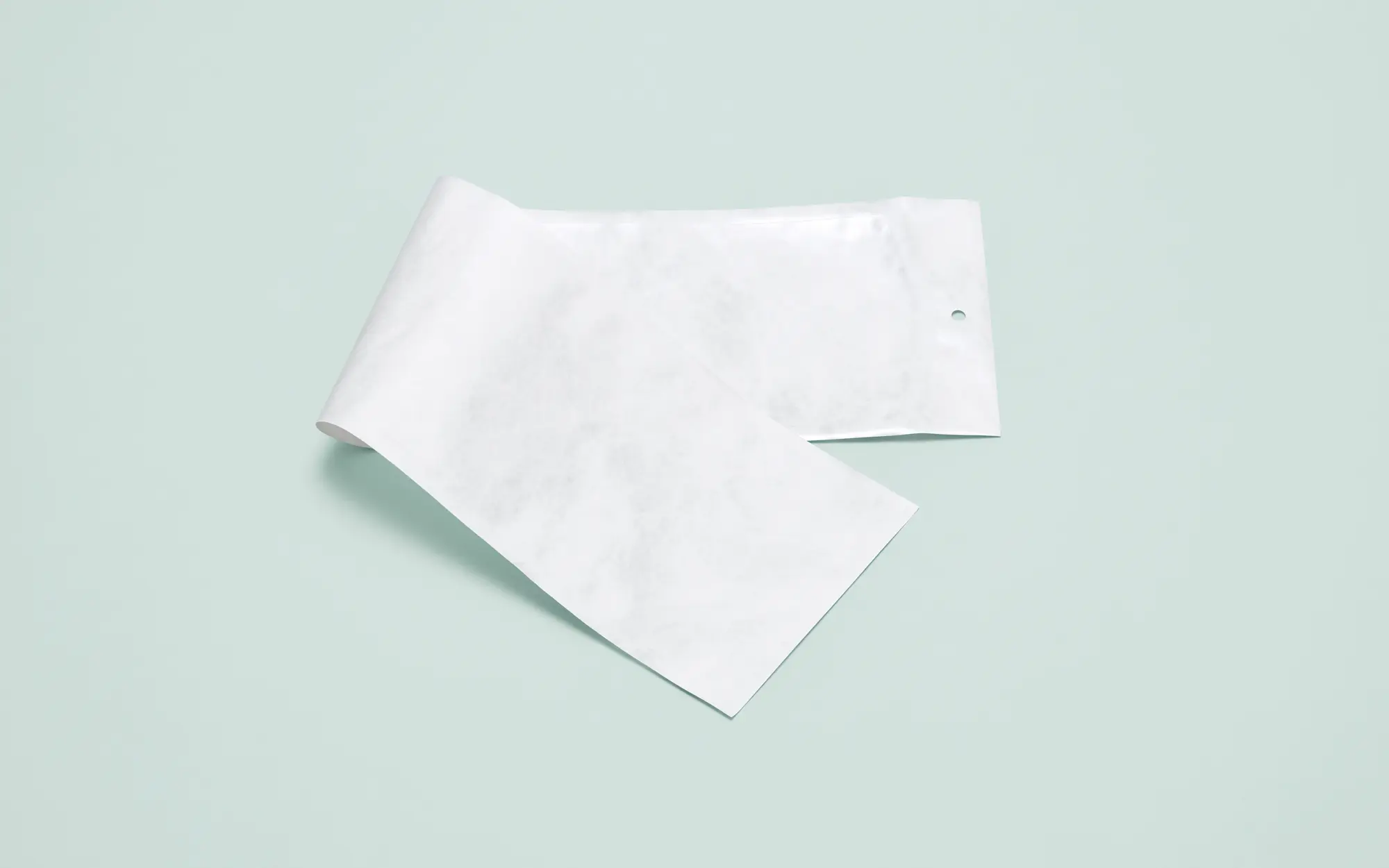

Flat rectangular sterilization pouch showing an easy, clean peel surface

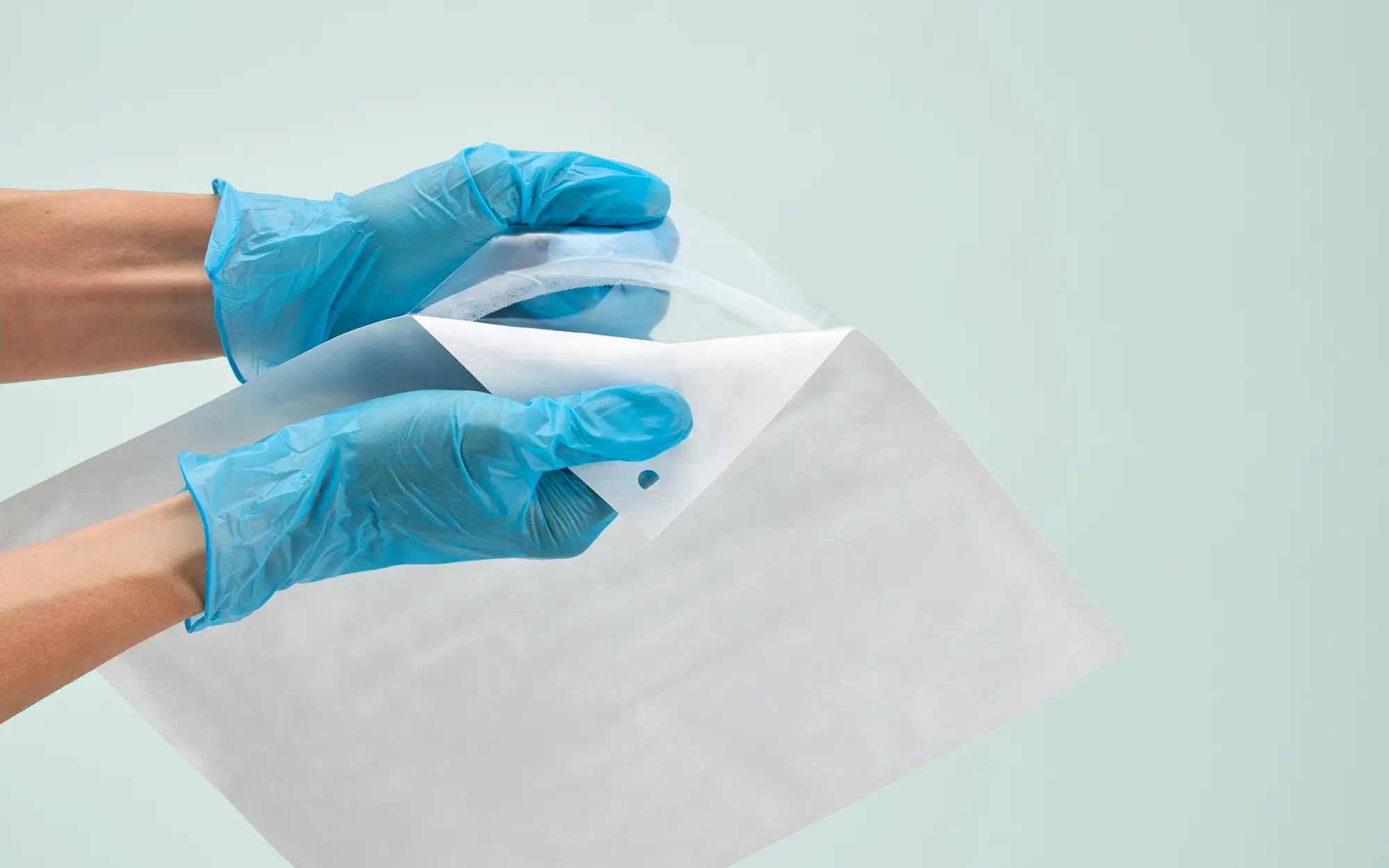

Gloved hands smoothly open a DNP sterilization pouch after medical sterilization

Table of contents

What is "DNP's medical sterilization pouch"?

Easy-open sterilization pouch at medical scene

A medical sterilization pouch is a single-use pack that enters the sterilizer with the device already sealed inside. It allows steam, ethylene-oxide gas, gamma irradiation, or other sterilants to penetrate and maintains sterility until the pouch is peeled open at the point of care. Conventional sterilization pouches may often present two issues: some materials are designed for only a specific sterilization method, and many paper-based substrates cause lint when opened—both of which can compromise device integrity and patient safety.

DNP’s medical sterilization pouch solves both issues at once with its easy and clean peel design and compatibility with multiple medical sterilization processes.

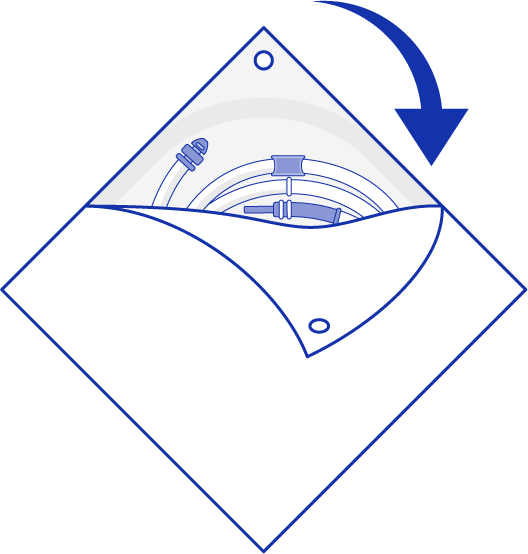

Illustration of easy-peel sterilization pouch opening to access a sterile device

Key features & functions

1. Coating technology

By applying our proprietary heat-seal coating to the nonwoven substrate, the sterilization pouch peels open smoothly across the entire sealing area, leaving a clean peel surface.

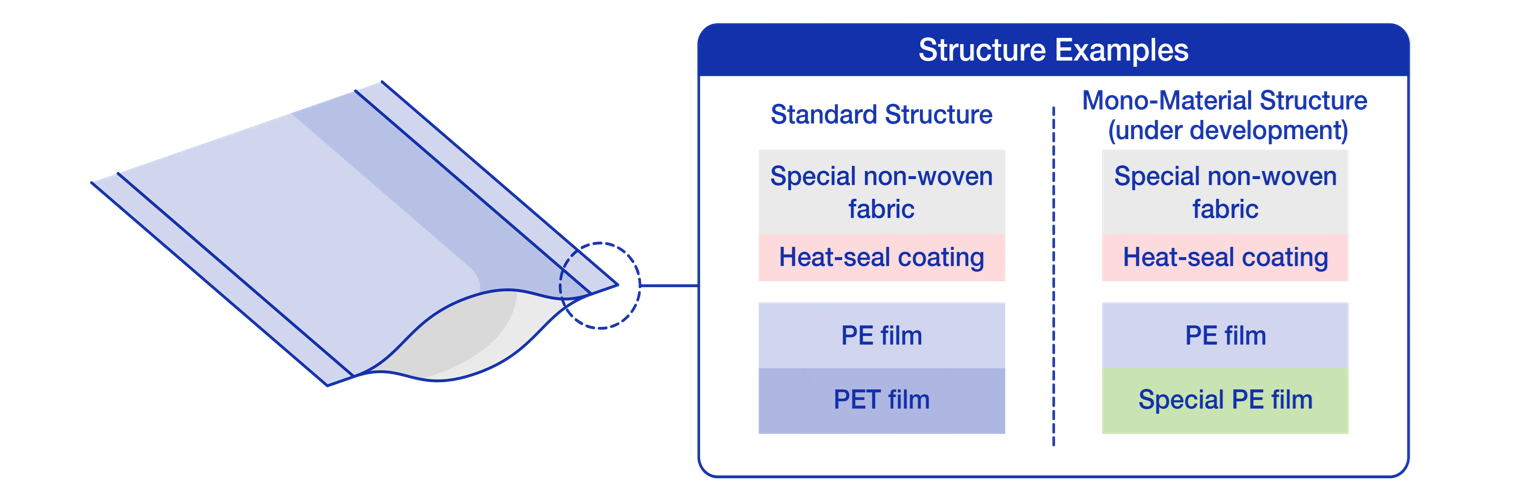

Cross-section diagram of DNP's medical sterilization pouch

While this coated type offers excellent performance, an uncoated version with easy-peel functionality is also available to meet different needs.

2. Compatible with commonly used sterilization methods

DNP's Medical Sterilization Pouch Medical Grade Paper Film
EOG
Gamma Irradiation
E-beam
Steam
VHP

3. Stable supply & quality control

Vertical Integration from printing and coating to bag-making and inspection processes, every stage is performed in-house ensuring a high-quality and stable supply both to Japan and overseas.

Coating Bag making Inspection 1 Inspection 2
Inspection System - Infrared defect inspection (front/back) on select products

- Proprietary know-how in heat-seal coating
- Production in a controlled hygiene zone under strict quality management

- Inline 100% inspection selected products

- Continuous monitoring of sealing temperature and time
- 100% visual inspection for all units

-standardized inspection procedures based on manuals
- Sample checks for appearance, peel strength and pouch size

4. Widely adopted in medical devices & pharma industry

For over 30 years, DNP’s medical sterilization pouches have been adopted by medical device manufacturers, pharmaceutical companies and a wide range of other industries—all supported by our rigorous quality management system.

Forms & sizes

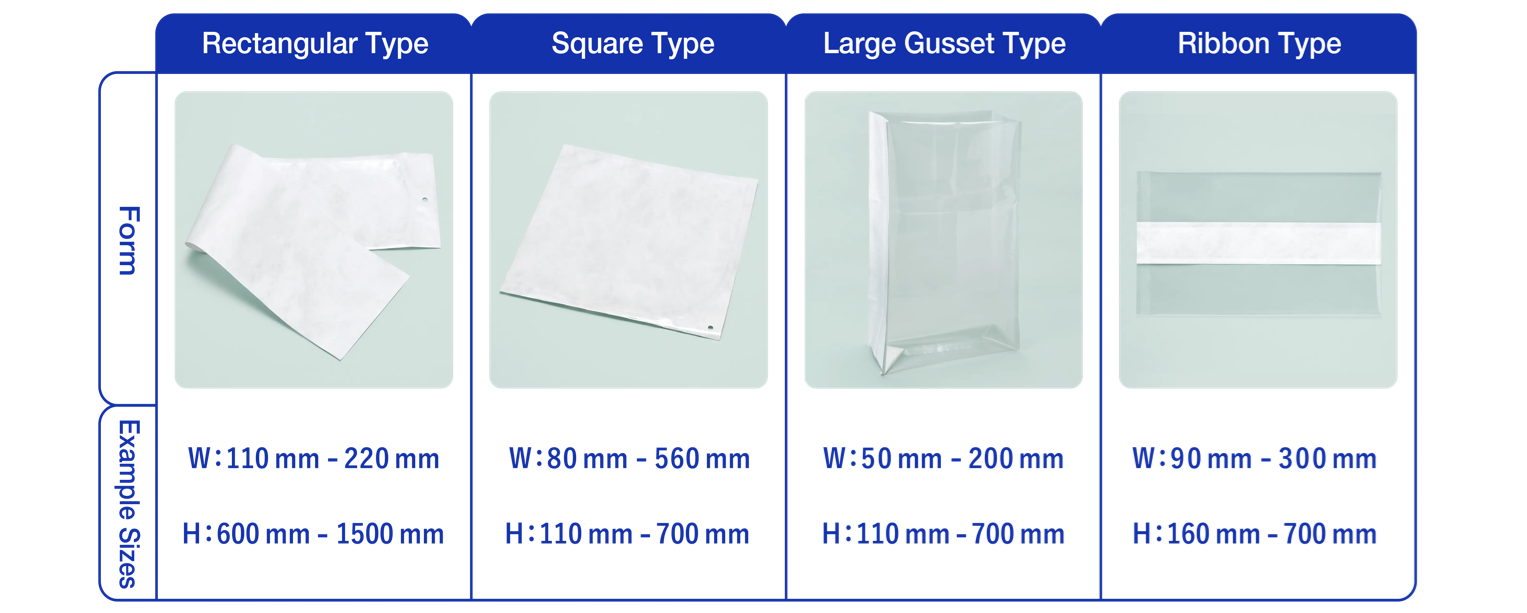

Forms & Sizes of DNP's medical sterilization pouch: Rectangular Type, Square Type, Large Gusset Type, Ribbon Type

The above dimensions reflect machine-compatible ranges; actual production sizes may vary depending on processing location and substrate configuration. Please contact us for details.

Applications & case studies

Medical devices

Our medical sterilization pouches are widely adopted for guidewires, catheters and a variety of other medical devices.
